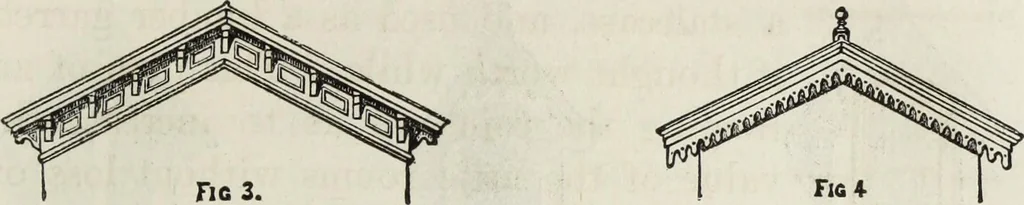

panying little sketches. Fig. 1 is a high-pitched gable,with verge-board. Fig. 2 shows a similar gable hipped VILLAS AND COTTAGES. 103 back, which entirely alters its character. The eavesmay be curved, as here shown, if preferred. Fig. 3 … shows a gable of flatter pitch, with cantilevers. Fig. 4,a corresponding gable, with pendant finish. Fig. 5, a
