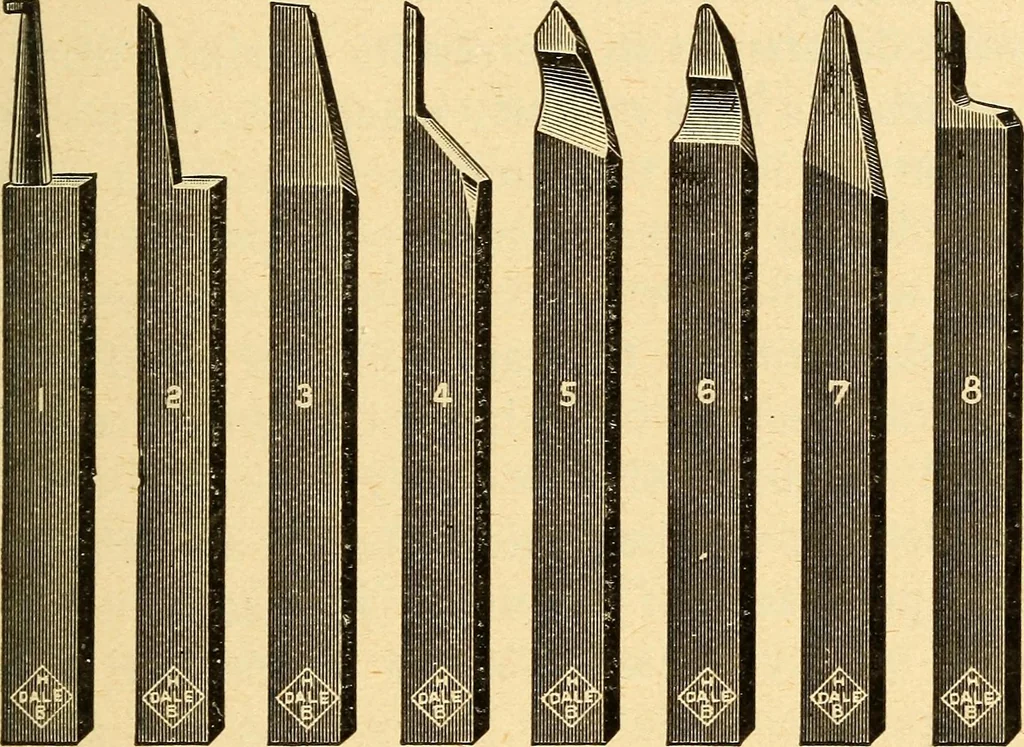

THE AMERICAN LATHE. 753 into the cut, using the point of least resistance in the toolor the tool post as a fulcrum, but if the tool is so formedthat the top of the cutting edge is below the top of the bodyof the tool, a pressure sufficient to spring the tool wouldcause it to leave the cut, which,… … Fig. 123. Slide Rest Tools. No. 1, Boring Tool; No. 2, Centering Tool; No 3, Side Tool; No. 4, Smoothing Tool; No. 5, Turning Tool; No. 6, Round-Nosed Tool; No. 7, Thread Cutting Tool; No. 8, Parting or Cutting-ofE Tool. Fig. 123 shows the usual shapes of cutting tools for use inthe slide rest.…
