The watchmakers' lathe, its use and abuse; a story of the lathe in its various forms, past and present, its construction and proper uses (1903)
Goodrich, Ward L. [from old catalog] · Chicago, Hazlitt & Walker · leaf 230

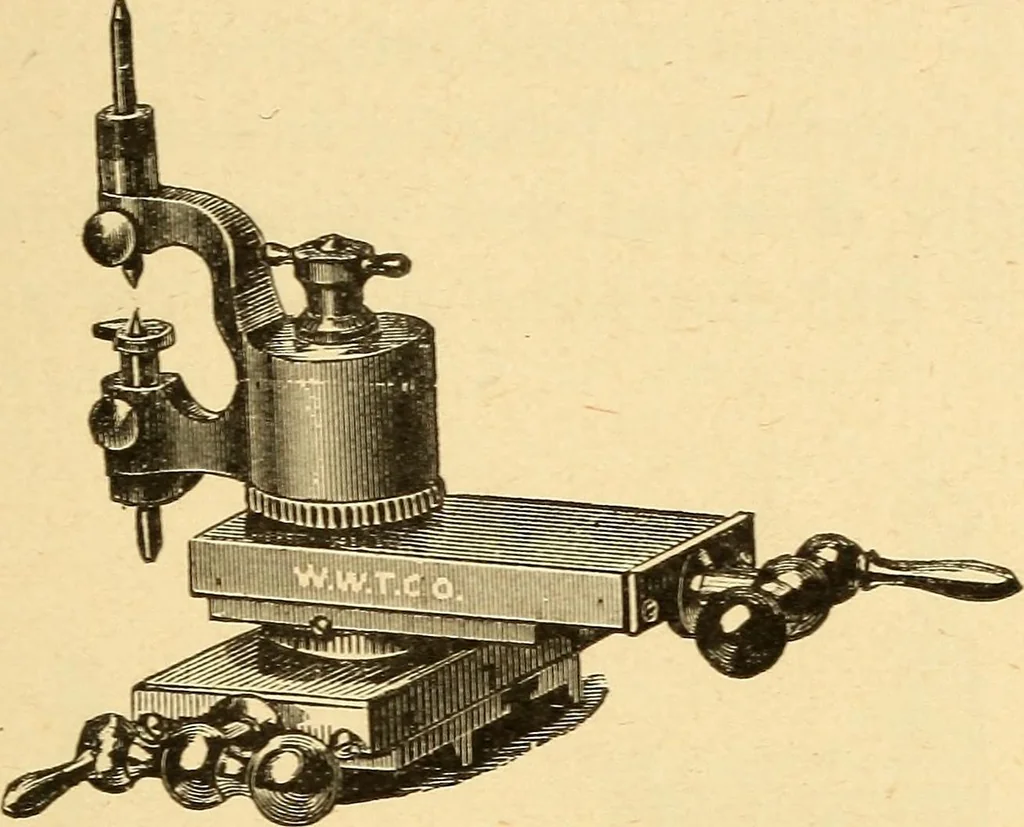

nclines drop the cuttingspindle below the center of the lathe, or raise it above thecenter, using the front of the cutter as a guide. Sometimes wheels are cut with the cutter in the lathechuck and the work staked on its pinions and held in the THE AMERICAN LATHE. 229 rounding-np tool. The… … Fig. 211. Rounding-up Tool Bolted on Slide Rest. attachment in position and Fig. 212 shows the attachmentwith a wheel on its pinion, resting on the table, with thetable turned so that its edge supports the web of the wheelready for work. The shape of the snail provides for sup-porting wheels of…
Clocks and watches · Lathes
