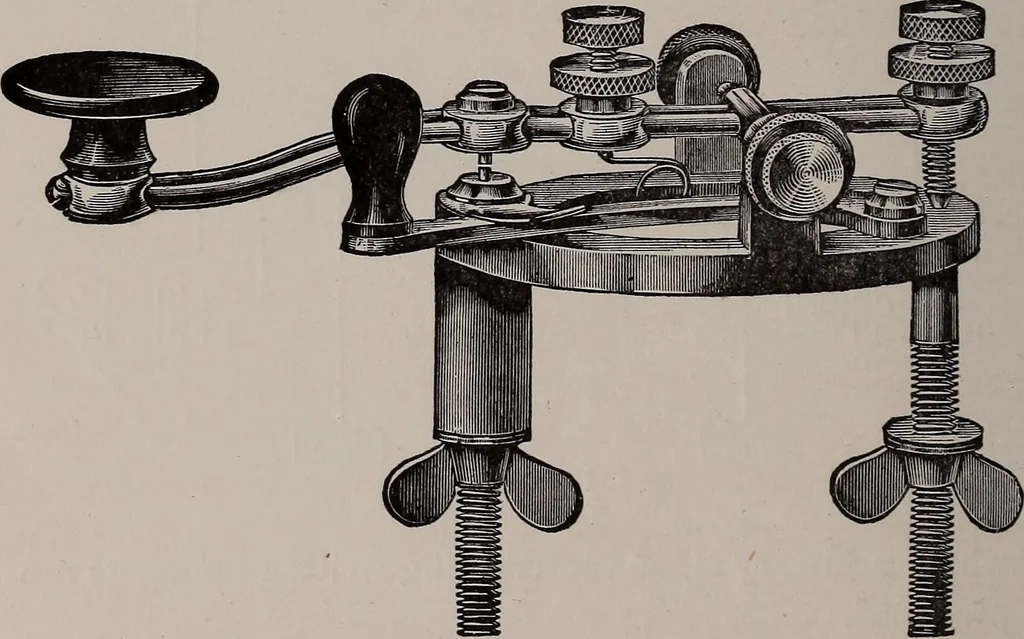

wo of theinstruments, with the positive pole of one battery andthe negative pole of the other, as shown in Fig. 83 j theremaining pole of each battery being connected, throughthe remaining instruments, by a short wire, with theearth, by which the circuit is completed. The earth, inthis case, is not… … Fig. 84. The Key.—The transmitting instrument is called akey, and is constructed as shown in Fig. 84, with a THE TELEGRAPH AND TELEPHONE. 191 hinged lever which can be depressed by an insulatingknob in opposition to a supporting spring, so as to bringinto contact two points, shown under the lever…
