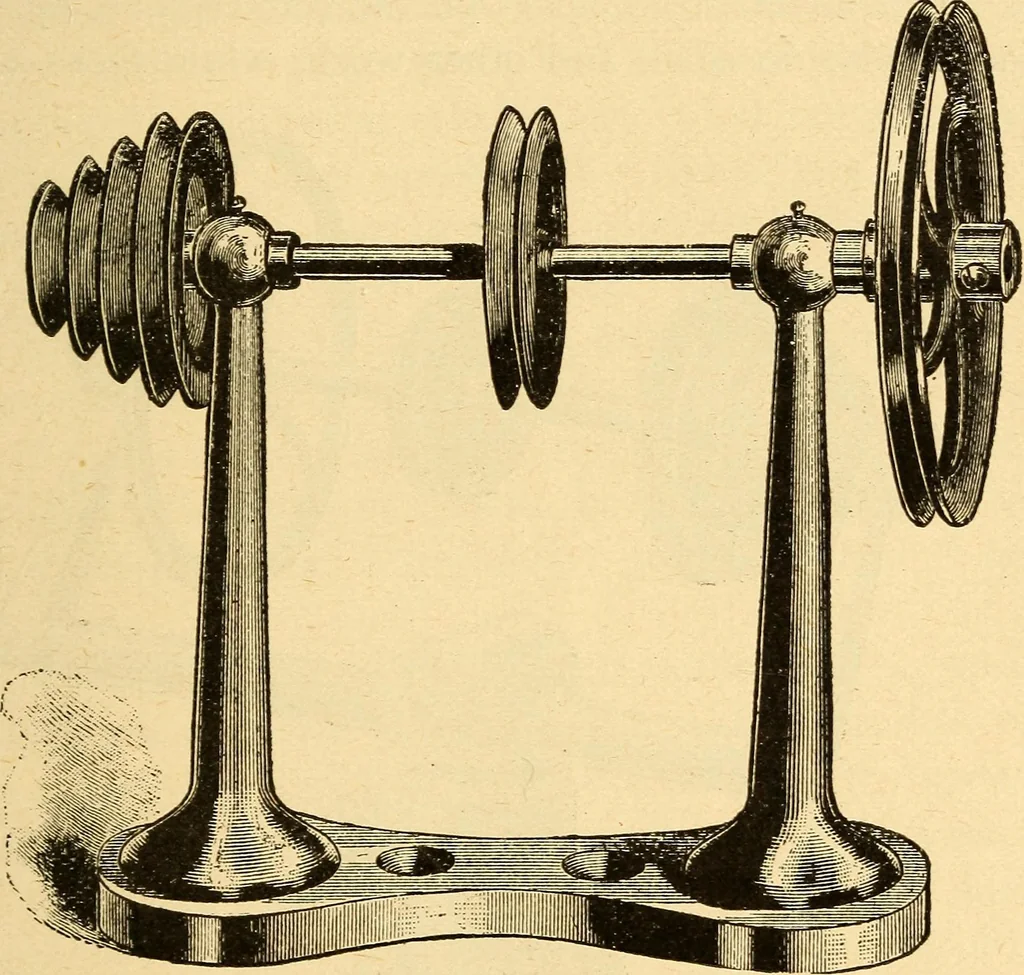

THE AMERICAN LATHE. 245 Up slack in all belts, but we think that this advantage ismore theoretical than real. A twisted raw hide belt from thecone pulleys on the lathe to those of the shaft is readily ad-justed by twisting or untwisting to regulate the tension.The idler pulleys should take care of… … Fig. 217, give way when they should be rigid. The countershaft inFig. 218 runs on centers, while that in Fig. 217 runs inboxes. The pulleys in Fig. 218 have extension split sleeveswhich are compressed by thumb nuts, thus clamping themto the shaft in any desired position. As a matter of fact, wre…
