American School (Chicago, Ill.), Nelson, H. William (Hector William), b. 1869 · Chicago : The School · leaf 50

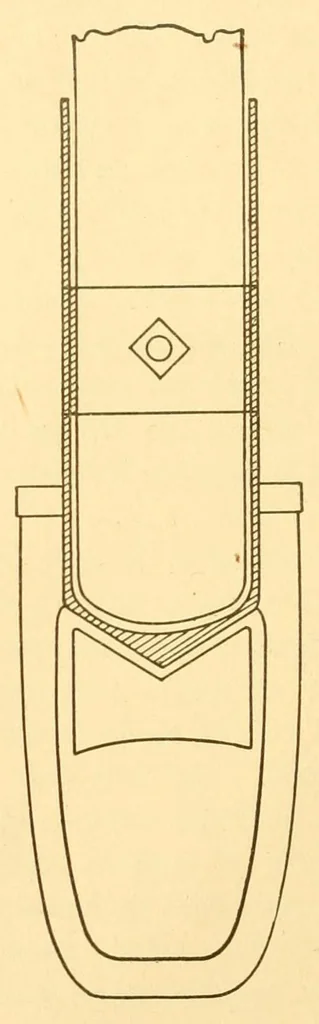

WEAVING. 116 or as shown in Figs. 78 and 79, the two points must be set as straight as possible, in order to avoid a twisted picking stick. The mechanism shown in Figs. 78 and 79 has somewhat of a rocking motion, and is used very extensively on Mason looms. It is claimed for this style of shoe that… … this manner, in the majority of cases a Fig. 79. Cross Section of Picker Stick and Shoe. round hole in the picker is formed by the shuttle tip striking it. It is a well-known fact that a round hole in the picker denotes that the shuttle is running correctly, because a round hole cannot occur if…
Weaving
Internet Archive · Claire T. Carney Library, University of Massachusetts Dartmouth · Public domain (published before 1931). Free to use for anything.
