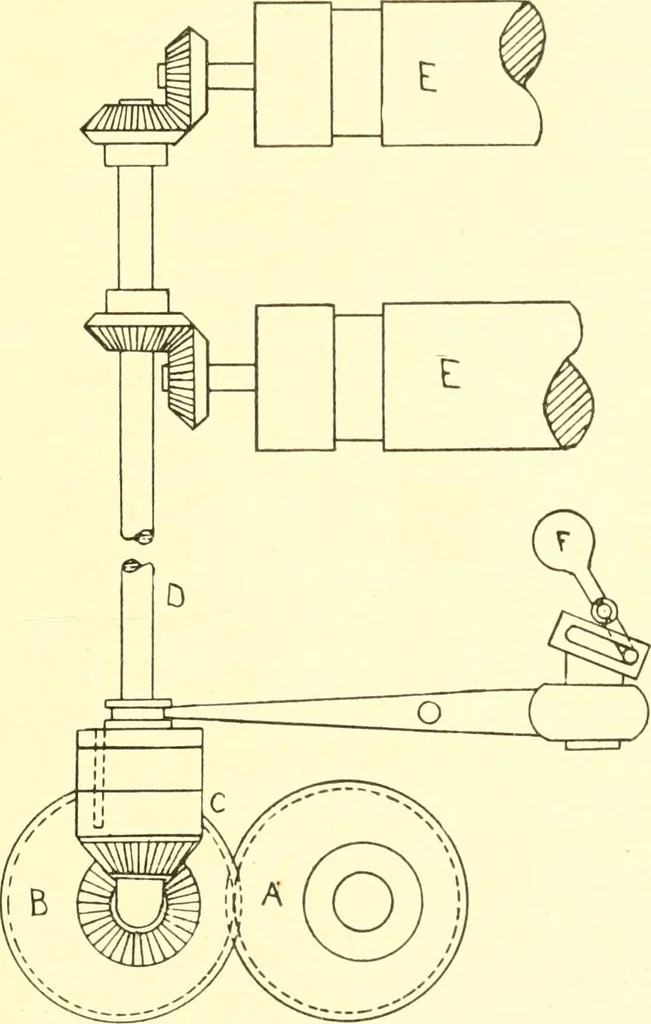

a bevel gear.This bevel gear is meshed into clutch gear 0. Clutch gearC is divided into three portions. The middle portion is se-curely fixed to upright shaft D. The top and bottom por-tions are loose on the shaft. The top portion has a pin con-nected to it long enough to pass through the middle… … Fig. 19. tate in opposite directions. When the chain has to be turnedback to find the right pick, the handle E is pulled back, whichraises the top portion of the clutch gear and this pulls the 82 WEAVING PLAIN AND FANCY. pin out of connection with the bottom portion of the clutchgear and the head…
