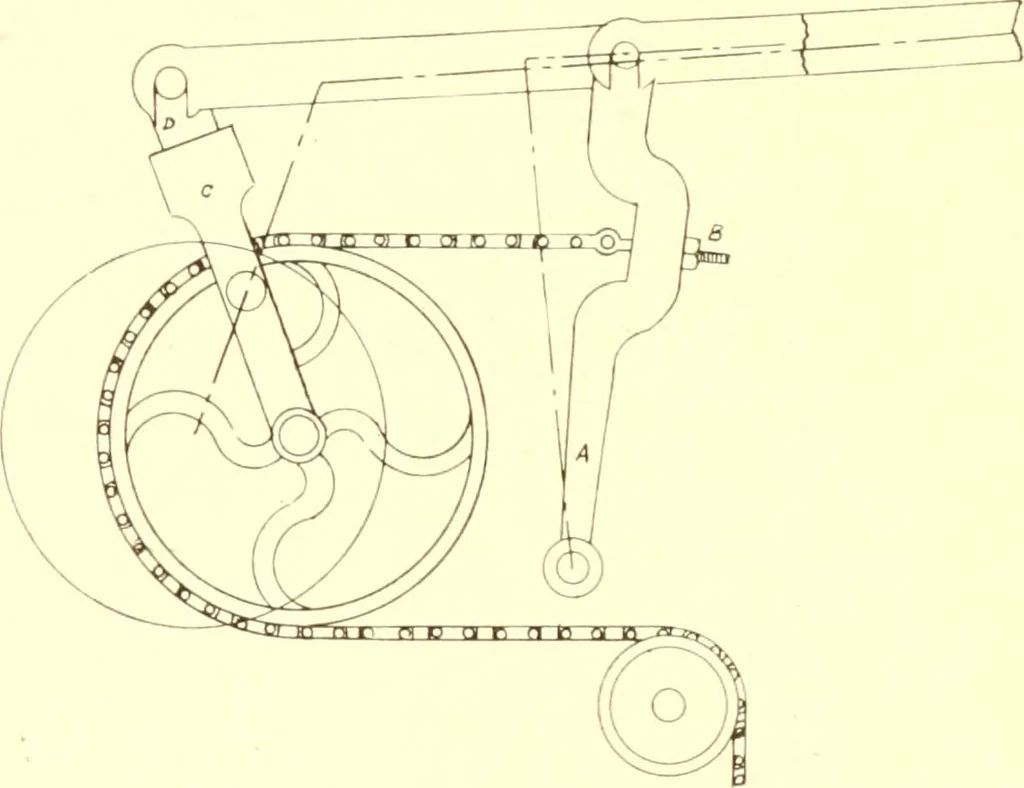

the handle E is pulled back, whichraises the top portion of the clutch gear and this pulls the 82 WEAVING PLAIN AND FANCY. pin out of connection with the bottom portion of the clutchgear and the head motion is disconnected from the loom.The reverse motion is set and the top cylinder turned byhandle… … Fig. 20.BOX MOTION. This motion is illustrated at Fig. 20. The boxes areraised by means of levers and chains connected to the headmotion. These levers are worked from the head in the samemanner that the harness levers are worked. Two connectingarms are required to raise four boxes, the short arm to…
