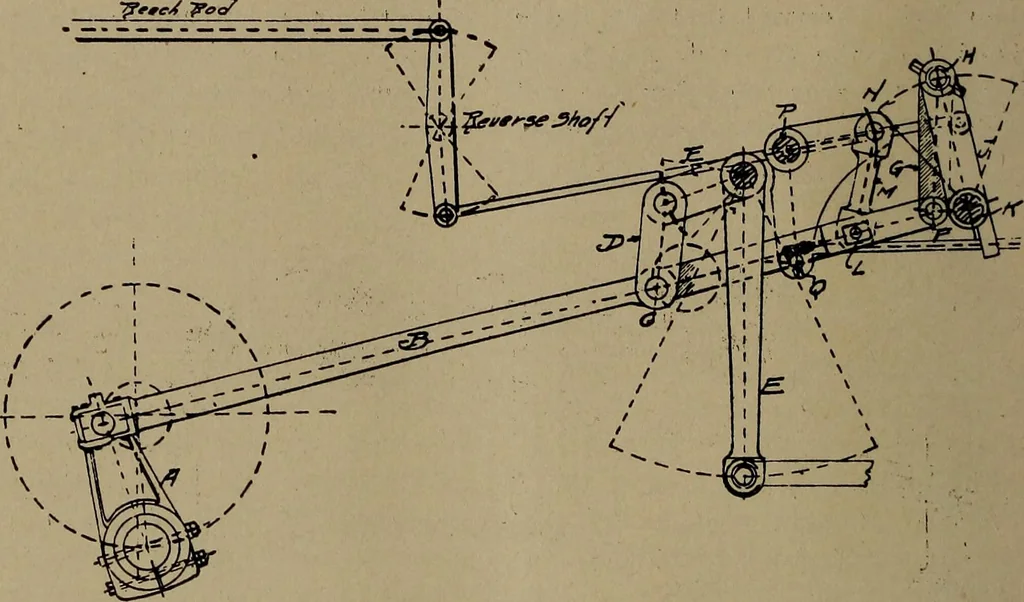

in parallel precludes the•possibility of any of that peculiar varia-tion in motion incident to all movementswhere circular motion is changed intolinear motion and which is such a disturb-ing factor in the action of the Stephenson 7?e*e/ Toe? and which prevents the motion of thevalve gearing from… … FIG. 4. BAKER-PILLIOD VALVE GEAR ARRANGED FOR OUTSIDE ADMISSION. shifting link motion, and is not alto-gether absent in the Walschaerts valvegearing. This regularity of movement isfully and completely secured by the car-riage of the gearing, which is almost en-tirely supported in a substantial,…
