Weaving; a practical guide to the mechanical construction, operation, and care of weaving machinery, and all details of the mechanical processes involved in weaving (1909)

American School of Correspondence, Nelson, H. William (Hector William), b. 1869 · Chicago, American School of Correspondence · leaf 118

An illustration from Weaving; a practical guide to the mechanical construction, operation, and care of weaving machinery, and all details of the mechanical processes involved in weaving, 1909, leaf 118

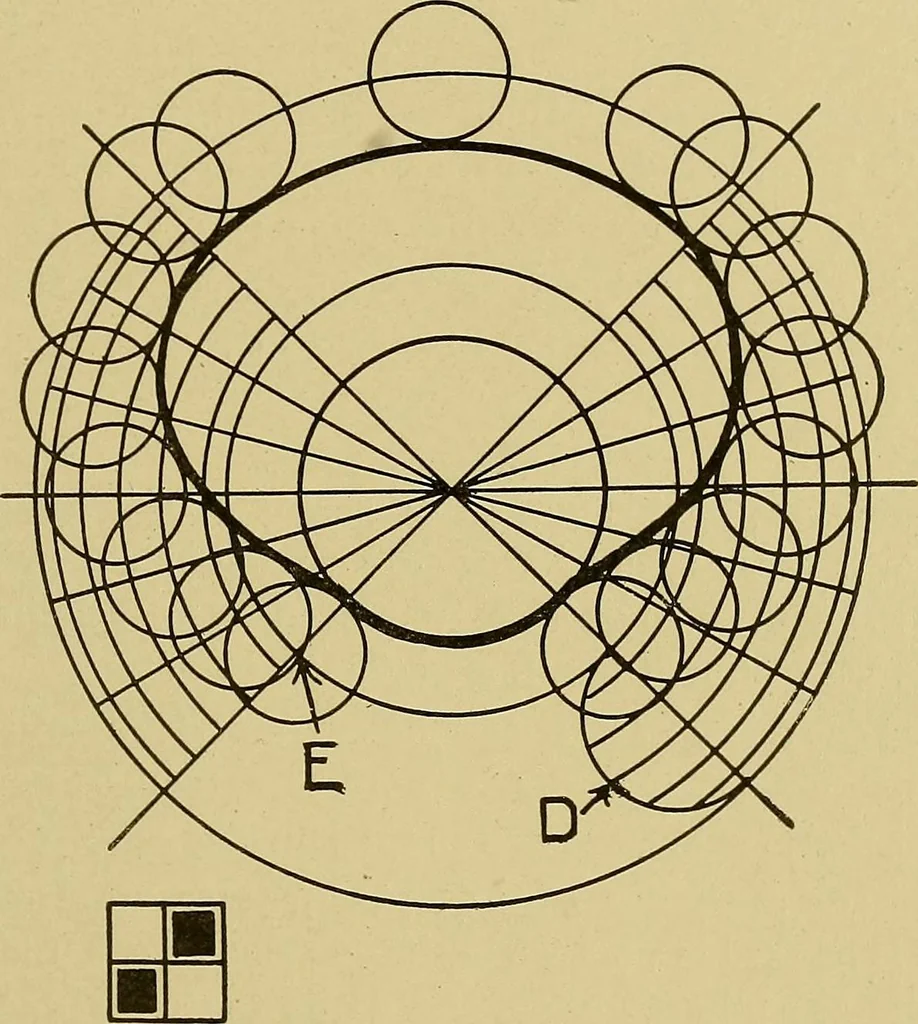

or Fig. 60, a cam for making plain cloth, are asfollows: Center of shaft (the shaft on which the cam is set) to near-est point of contact of the cam with the treadle bowl, 1| inches.Dwell to be one-half the revolution of crank shaft. Describe the first circle, with radius of 1| inches ; add to… … Fig. 60. Plain Cam. To make plain cloth tv/o cams are necessary, the pattern beingmade on two picks. Whatever number of picks there are to be tothe pattern, there must be as many cams to the round, or one revo-lution of the cam shaft. Sometimes when weaving fancy clothmore harnesses are required to…
