Cyclopedia of textile work : a general reference library on cotton, woolen and worsted yarn manufacture, weaving, designing, chemistry and dyeing, finishing, knitting, and allied subjects (1911)

American School (Lansing, Ill.) · Chicago : American school of correspondence · leaf 139

An illustration from Cyclopedia of textile work : a general reference library on cotton, woolen and worsted yarn manufacture, weaving, designing, chemistry and dyeing, finishing, knitting, and allied subjects, 1911, leaf 139

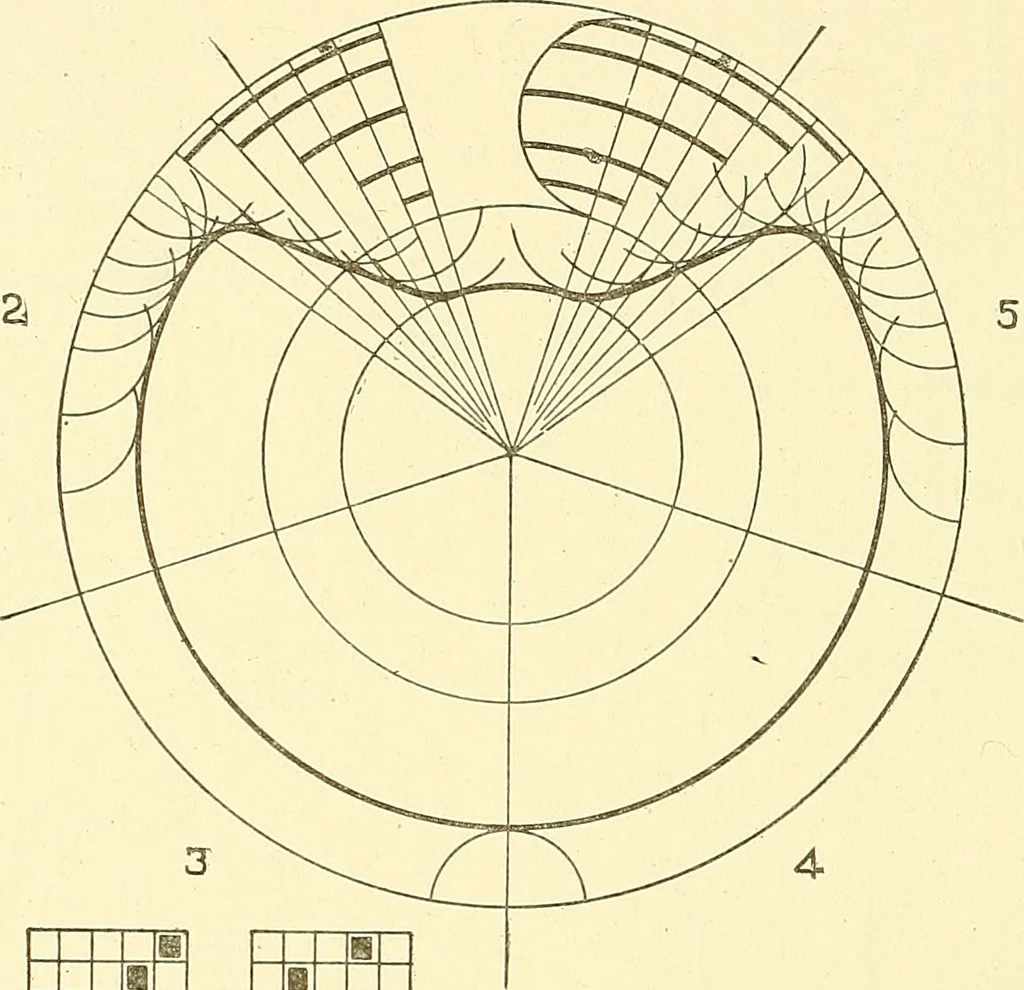

NG. two and one-half times less teeth than the gear on the shedding camshaft, that is, for a five end satin or twill cloth. (See Fig. 72.) If there is a gear of 70 teeth on the shedding cams, and a gearof 35 teeth, one-half the size, is placed on the pick cam shaft, thecams would travel at the rate… … ffi H_ ___!,_ _B a H _a H E i Fig. 72. Harness Sateen or Twill Cam. Example. There is a 30 driving gear on the crank shaft, im-parting motion to a 60 gear on the pick cam shaft; a 28 gear onthis shaft drives a 70 on the shedding cam shaft. If there is a four-pick pattern, what number of teeth…

Textile fabrics · Textile industry
