Weaving; a practical guide to the mechanical construction, operation, and care of weaving machinery, and all details of the mechanical processes involved in weaving (1909)
American School of Correspondence, Nelson, H. William (Hector William), b. 1869 · Chicago, American School of Correspondence · leaf 124

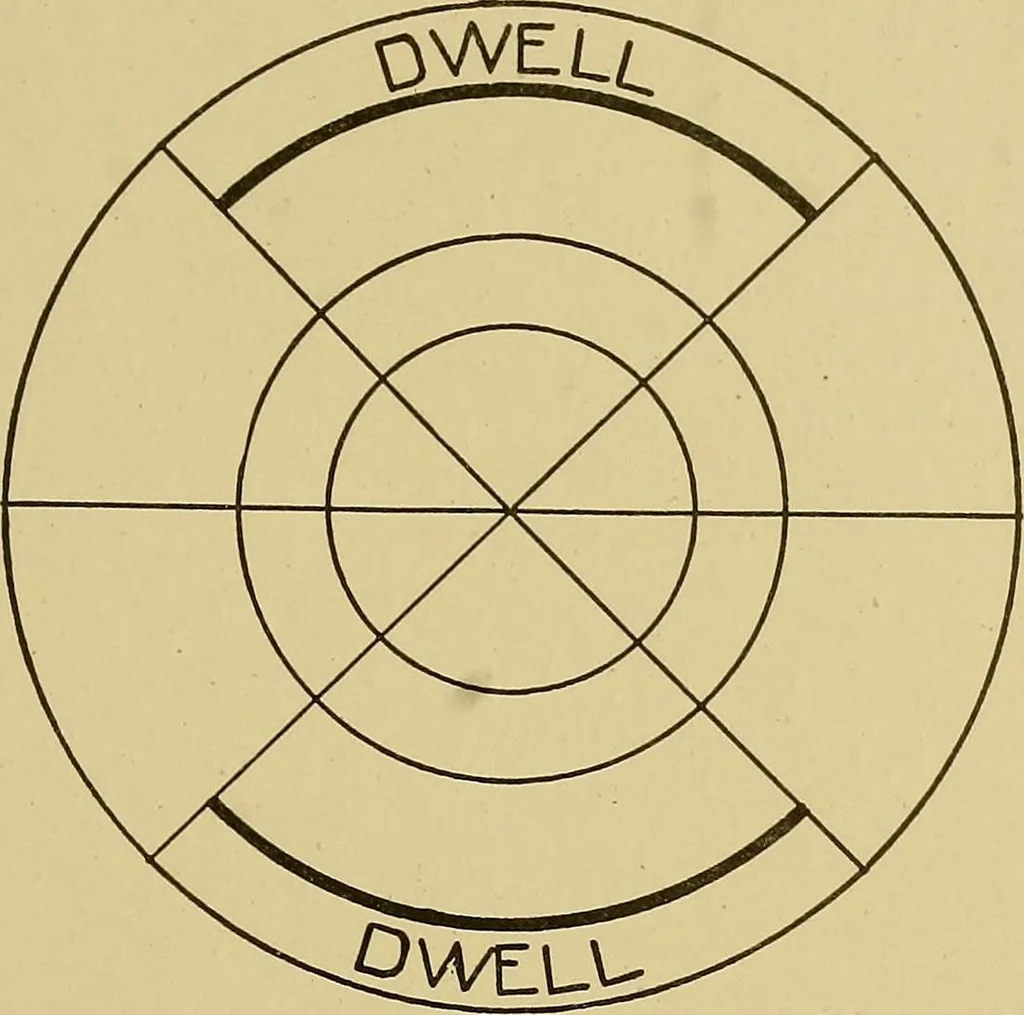

to the method of con-necting the harness straps with the treadles (see Fig. 54). Thetreadle at the point of connection with the front harness strap de-scends lower and also rises higher than the other treadle connectionwhich would mean, if equal cams were used, a higher lift of the frontharness;… … Fig. 63. Diagram for ]4 Dwell.
Weaving
