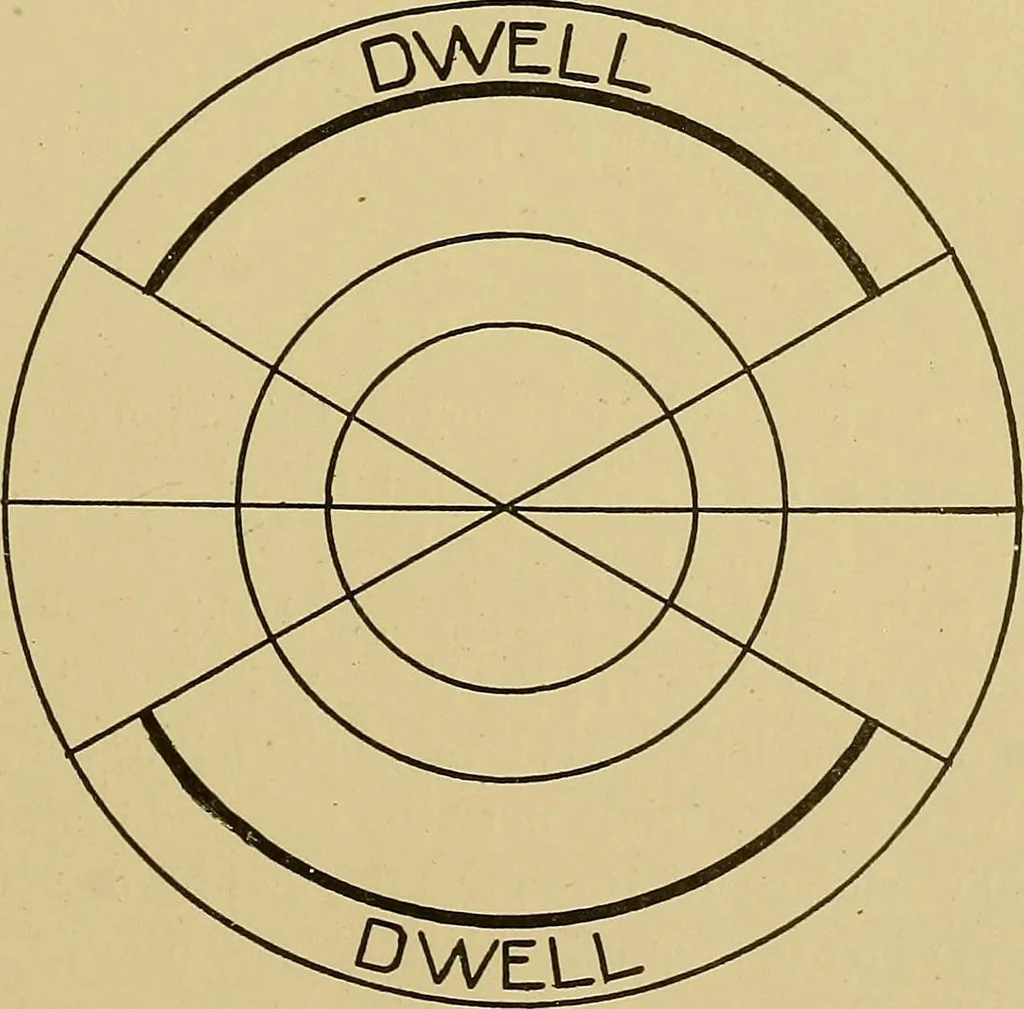

Fig. 63. Diagram for ]4 Dwell. … Fig. 64. Diagram for % Dwell. 100 100 WEAVING. To give the correct shed, the larger cam controls the treadle for theback harness, and the cam with the largest depression is placed overthe front-harness treadle. The front harness is also connected withthe smallest set collar on the harness roller.…
