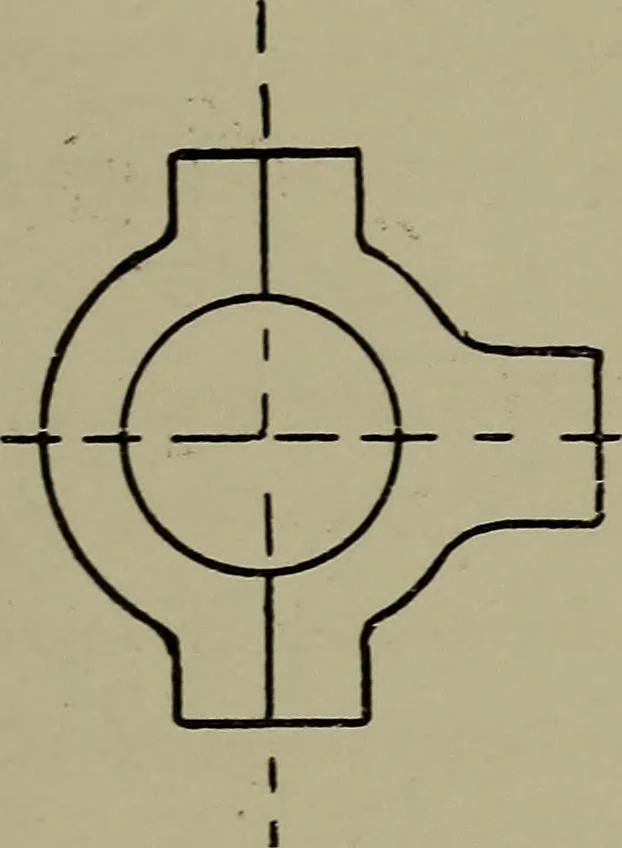

r end having a hole passingthrough it for the spindle-pin; instead of this,however, it may be forked at this end. The eccentric-strap is a brass casting, either cast TEE STEAM-ENGINE. Ill in two halves, or if solid, it must be equally halvedby a saw-cut, going right through the centre of thehole or… … Fig. 36. accurately fits upon the eccentric-pulley, when thetwo halves are brought together, and yet allow theeccentric to revolve freely inside. After fitting, drilla hole through each lug and pass two bolts through,which are tightened up with nuts; a small hole canbe drilled, and an oil-cup…
