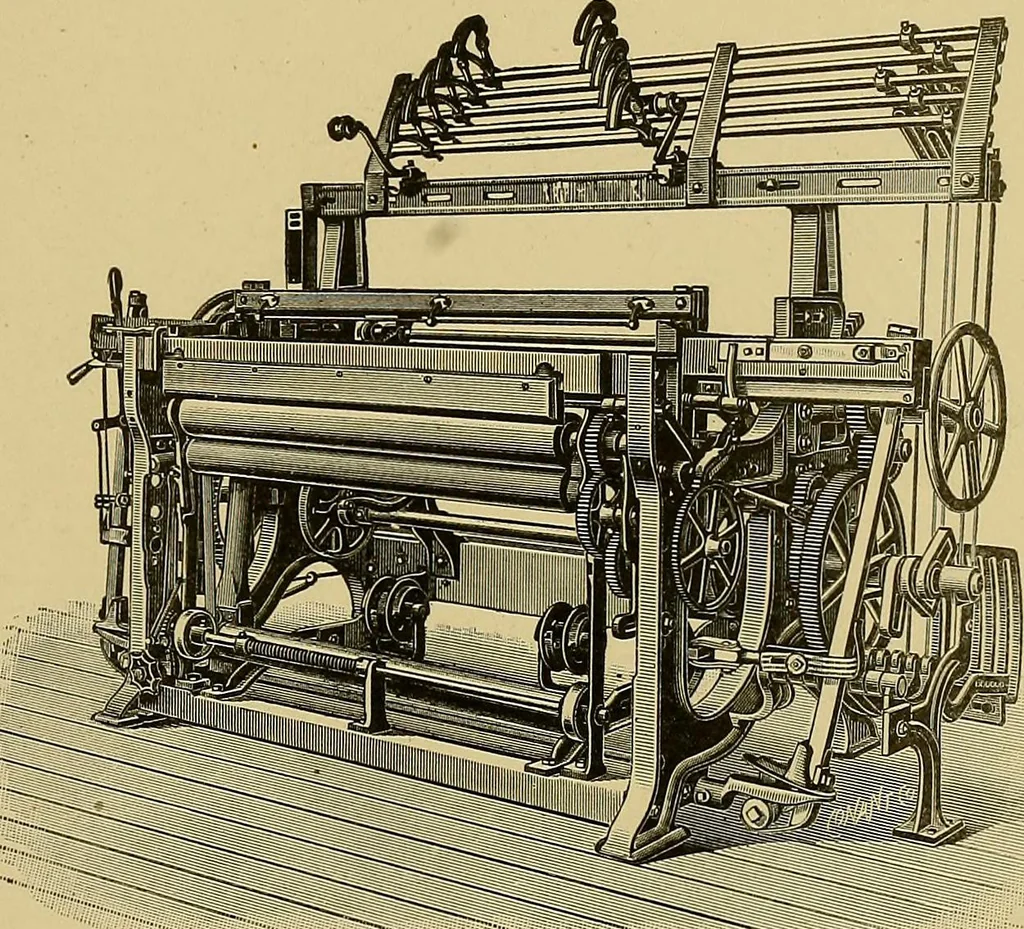

filling is placed in the shed. H? WEAVING. 103 Fig. 68 shows a loom with the cams fixed at the side of theloom. The harnesses are connected with the quadrant lever, whichis fixed to the supporting bar. A small arm is fixed to the back ofthe supporting bar, but at one end. A rod connects the arm… … Fig. 68. Loom with Cams ou the Sides. and through an intermediate it imparts motion to the cam gear.This gearing is set for a four-harness twill, whether one up and threedown, or two up and two down. (See cam in Fig. 69.) As explained in the construction of cams, one revolution of thecam equals the…
