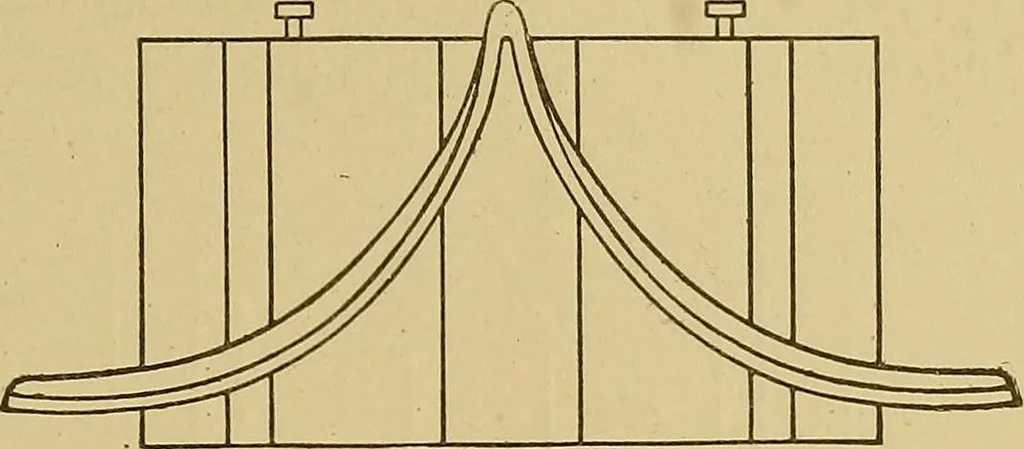

d would be guided up toomuch by the higher yarn, and when the shuttle reached the lowerportion of the shed beyond the temple it would have a tendency tofly out. The Bat Wing, or Ball and 5hoe Pick. There are several 134 WEAVING. 121 kinds of picking shoes, but while a long sweep shoe is certainly… … Fig. 81. A Correctly Shaped Shoe. sliding point, that is, where the ball slides off the top as in ig. 83.This loses the essential feature, the firm finished stroke, because theball slides off instead of its forcing the shoe ; the consequence is powerlost. An end view is shown at Fig. 82. The…
