Cyclopedia of textile work : a general reference library on cotton, woolen and worsted yarn manufacture, weaving, designing, chemistry and dyeing, finishing, knitting, and allied subjects (1911)

American School (Lansing, Ill.) · Chicago : American school of correspondence · leaf 157

An illustration from Cyclopedia of textile work : a general reference library on cotton, woolen and worsted yarn manufacture, weaving, designing, chemistry and dyeing, finishing, knitting, and allied subjects, 1911, leaf 157

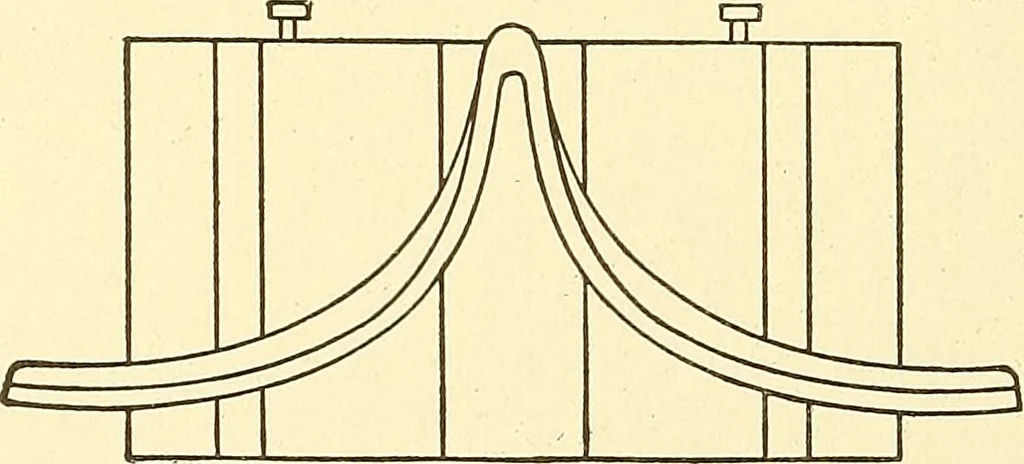

Fig. 83. Old style Shoe. The best setting for the shoe shown at A in Fig. 85 is heregiven. Examine the shoes and see there are no burrs on the inside;that is, on the part that fits on the shaft; it is also well to examinethat portion of the picking arm, for the shoe and arm should fitsquarely on… … Fig. 84. Shape of Shoe Given an Abrupt Motion. boss will grip the shaft. If these preliminaries are not attended to theshoes and arms are frequently becoming loose, causing the loom to bangoff. Set the shaft B in the brackets, and have the shaft free; i.e., nobinding in any part. If using an…

Textile fabrics · Textile industry
