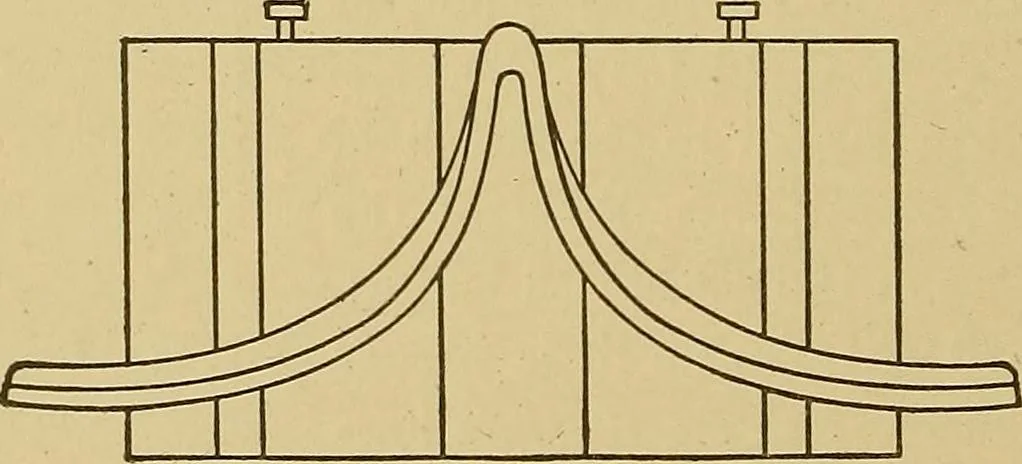

Fig. 83. Old Style Shoe. The best setting for the shoe .shown at A in Fig. 85 is heregiven. Examine the shoes and see there are no burrs on the inside;that is, on the part that fits on the shaft; it is also well to examinethat portion of the picking arm, for the shoe and arm should fitsquarely on… … Fig. 84. Shape of Shoe Given an Abrupt Motion. boss will grip the shaft. If these- preliminaries are not attended to theshoes and arms are frequently becoming loose, causing the loom to bangoff. Set the shaft B in the brackets, and have the shaft free; i.e., nobinding in any part. If using an…
