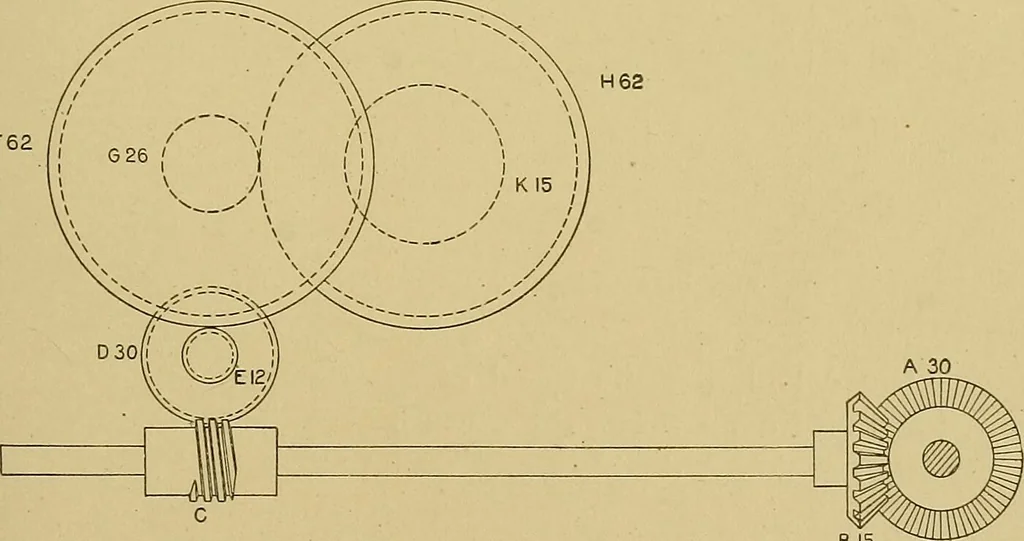

ti-plied or divided, will give the picks or change gear required. Toobtain the constant, proceed as in the first calculation, leaving offthe change gear. A X X X E iSTTTTTTT^ = Constant 2,000 or 2 ^m n^/-^ ^ tt i B X D X F Change gear X Constant = Picks. Picks -=- = Change. A X X X E B X D X F ^ =… … Fig. 100. Continuous Take-Up Motion. Continuous. Fig. 100 shows a continuous take up motion.A is a bevelled gear fixed on the bottom shaft, imparting motionto a second bevelled gear B. On the same shaft as B, is a siugleworm C. This is geared into a worm gear D; and through the 161 148 WEAVING.…
