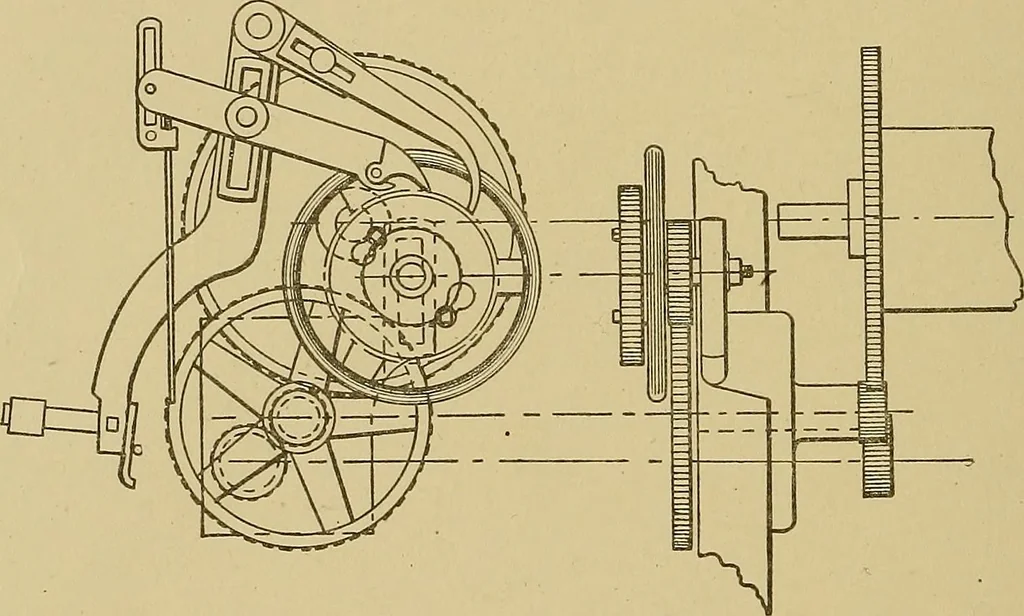

, it is simplya continuation of the motion sliown on Fig. 100. A worm, is aspiral thread gear, and resembles a spiral ridge cut aiouud a shaft.A worm gear, is almost like a spur gear, or what is commonlycalled an ordinary gear; but the teeth are set slightly on an angle,so as to mesh more perfectly… … Fig. 101. Negative Take-Up Motion. When calculating the speed of a train of gears, which re-ceives motion from a worm, the worm is reckoned as one, that isa one tooth gear. A double worm would be counted as two. Example. 15 X.SO X62 X62 12 X 2 = 24 Picks. 30 X 1 X 12 X 26 X 15E is the change gear;…
