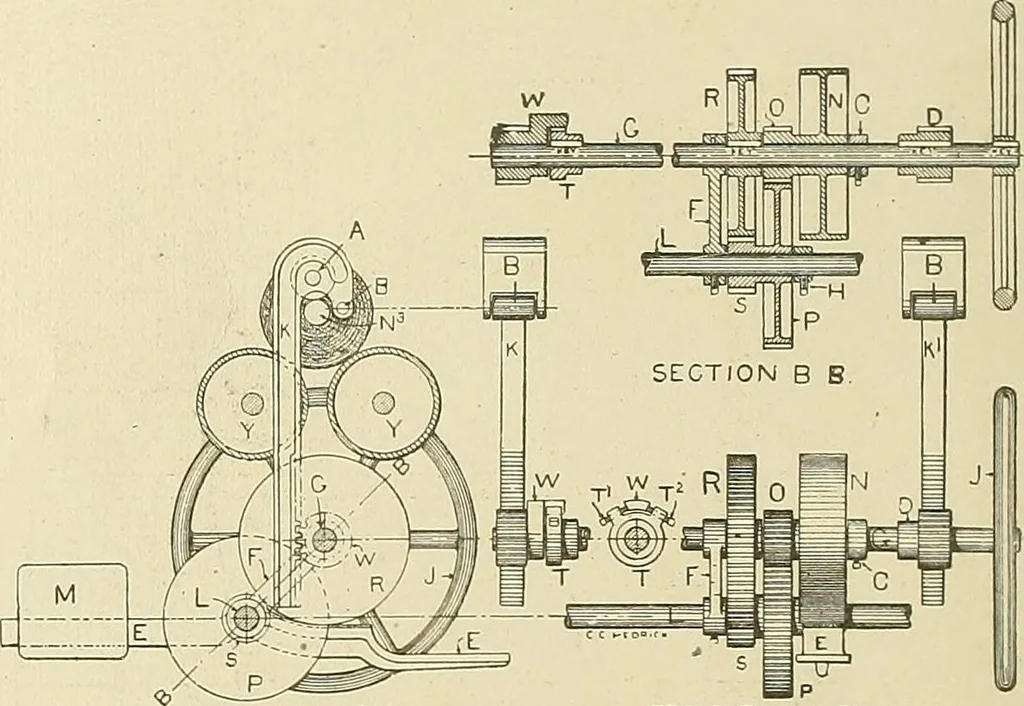

pinion, D ; both pinions are secured to the rackshaft, G: The gear, R, also on the rack shaft, is connected withthe pinion, O, which is on the hub of the break pulley, N, bythe gears, S and P. These gears turn loose on the shaft, L, andare held in position by the collars, F and H. The break… … SIDE ELEVATION FRONT EL£:M«TI0N Fig. 43. Friction Let-off. Sact vnth it by the weight, M. The face of tlie break lever wliichbears against the pulley is lined with leather. As the lap increases in diameter, it draws up on the racks,which are kept from rising by the friction of the break lever…
