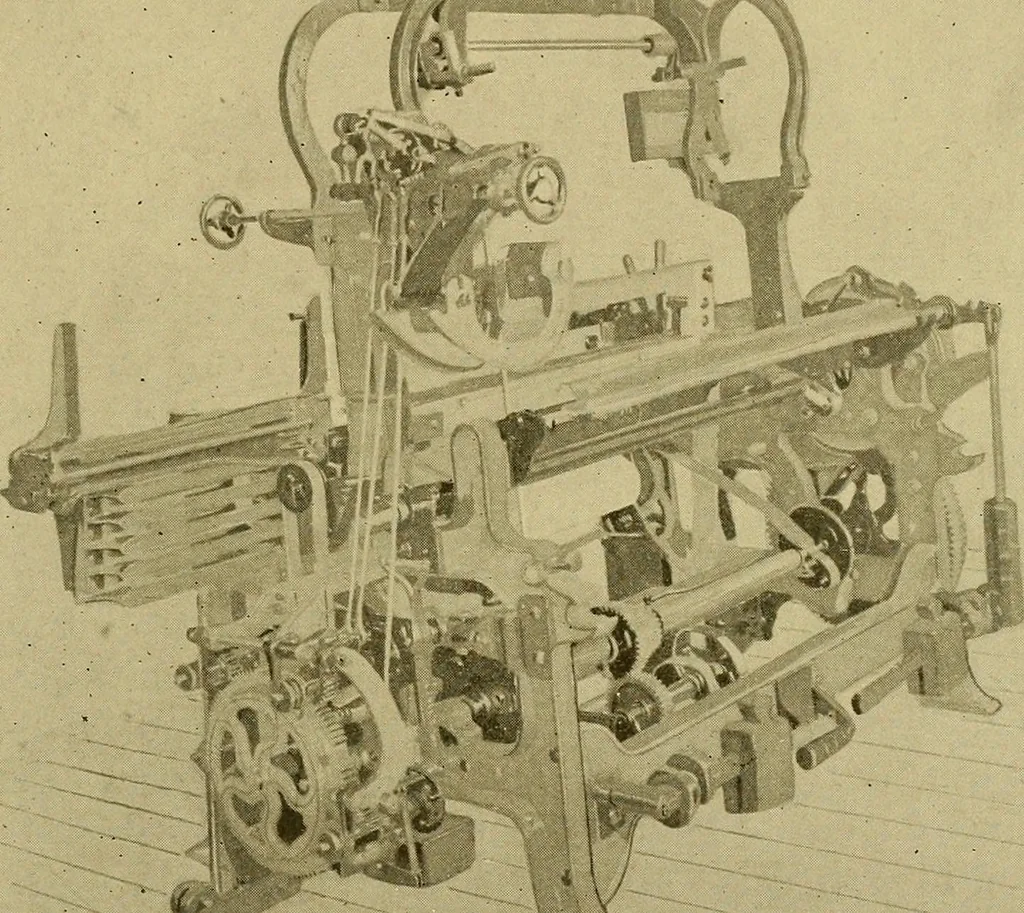

lever, allowing the connectingrod to fall, thus drawing the projection on the long slide intoplace, and completmg the revolution of small gear, when the boxeswill return to their normal position. The spring clamp, L, servesthe purpose of a protection device to prevent breakage of boxes orshuttles m… … Pig. 120. Crompton Gingham Loom. TJming and Fixing of the Motion. To time the motion setthe pin gear with the pin on the bottom center when the crank ison the back center and the shuttles being picked from the boxside; or with the pin on the top center when the crank is on theback center with the…
