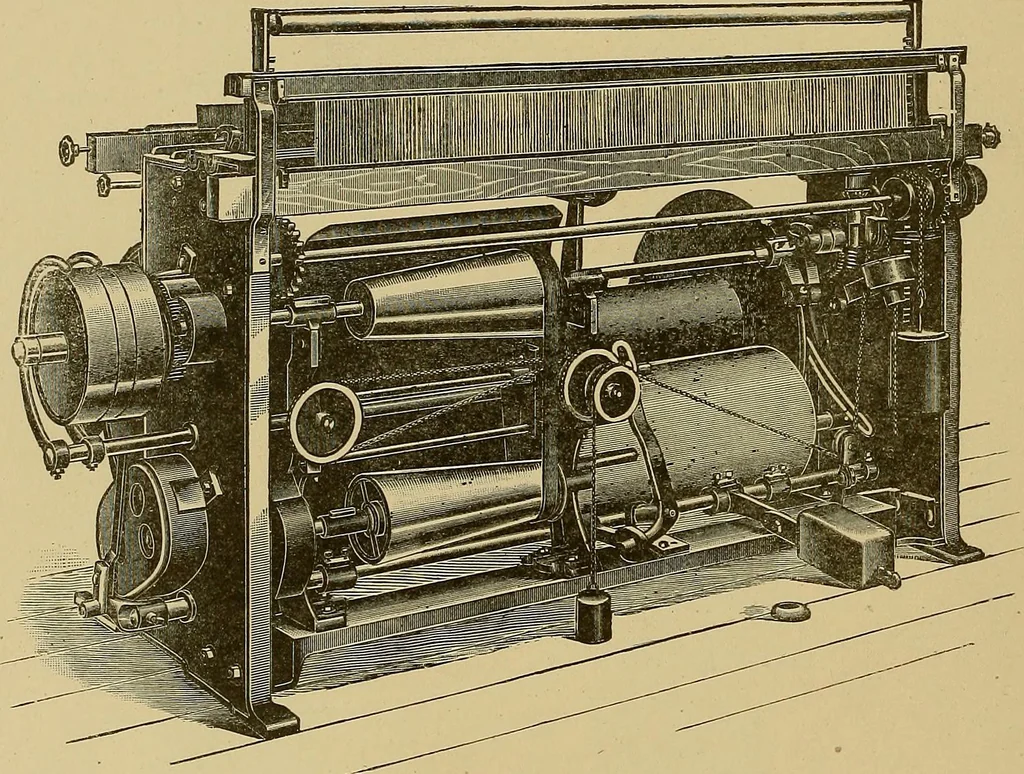

to turn an empty beam the distance of 36 inches asit would to turn the distance of 36 inches on a full beam. Sothat if the beam when it is full of yarn measures 3 yards in cir-cumference, it will take three times as long to turn the full beamas it did to turn the empty beam, when it was 36 inches… … Fig. 12. the yarn when there is less quantity on the sx^ool. This oftencauses the yarn to break, which is detrimental to good weaving,inasmuch as knots in the warp 3^arn increase the amount ofdefective cloth. Cone Drive. To overcome the difficulty of increased strain-,the cone drive (shown in Fig.…
