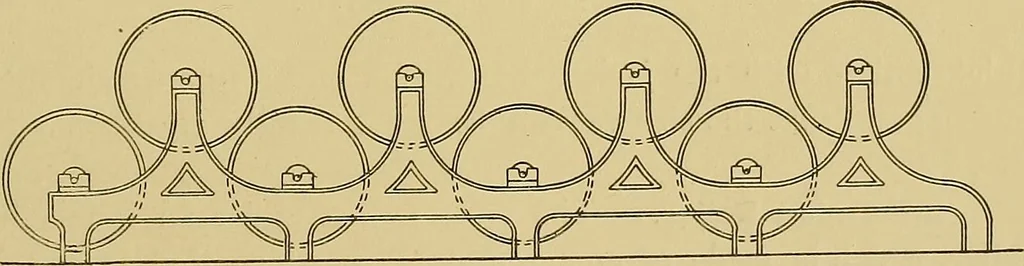

Fio-. 26. plain and jacketed. The plain box is the one in which the size isheated and boiled by means of a perforated pipe that is in the box.This pipe discharges the steam into the size. The jacketed size box has a steam chamber under and around … Fig. 27. it, so that the size can be heated without steam being dischargedinto the mixture. This jacketed size box also has a perforatedpipe inside, so that either method can be used. 41 34 WARP PREPARATION. Botli the above systems have their advantages. It is claimedthat with the jacketed vat…
