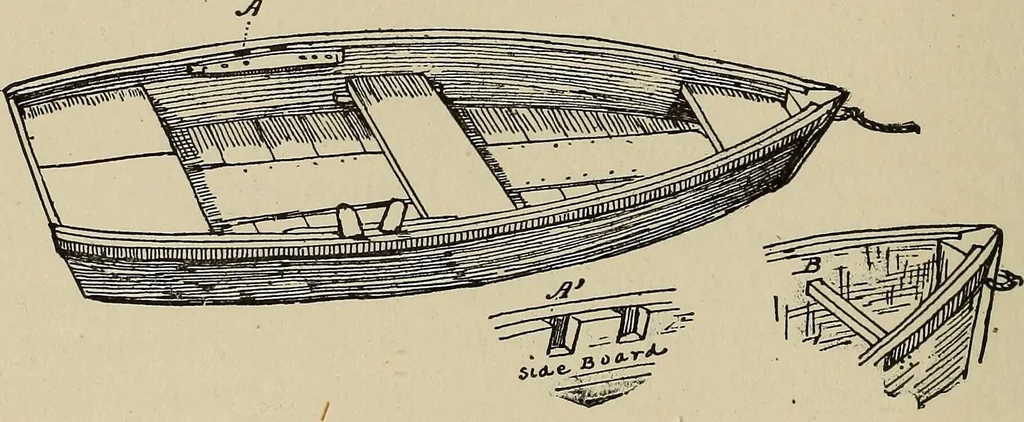

and ii^ inch long in each side board (A, A, Fig.88). Saw two more notches of the same size 3 inches from thefirst; these will make the rowlock when the side strips havebeen fastened on. These strips should each be made of i-inch plank, 2 incheswide and an inch or two longer than the side boards.… … Fig. 88. at the rowlocks, and fasten them firmly on with screws (Fig.88, A). Next cut two cleats for the oarsmans seat to rest upon.Nail them to the side boards amidship a little nearer the bot-tom than the top, so that the seat, when resting upon the cleats,will be about half the distance from the…
