Wheels and wheeling; an indispensable handbook for cyclists, with over two hundred illustrations (1892)
Porter, Luther Henry · Boston, Wheelman Company · leaf 243

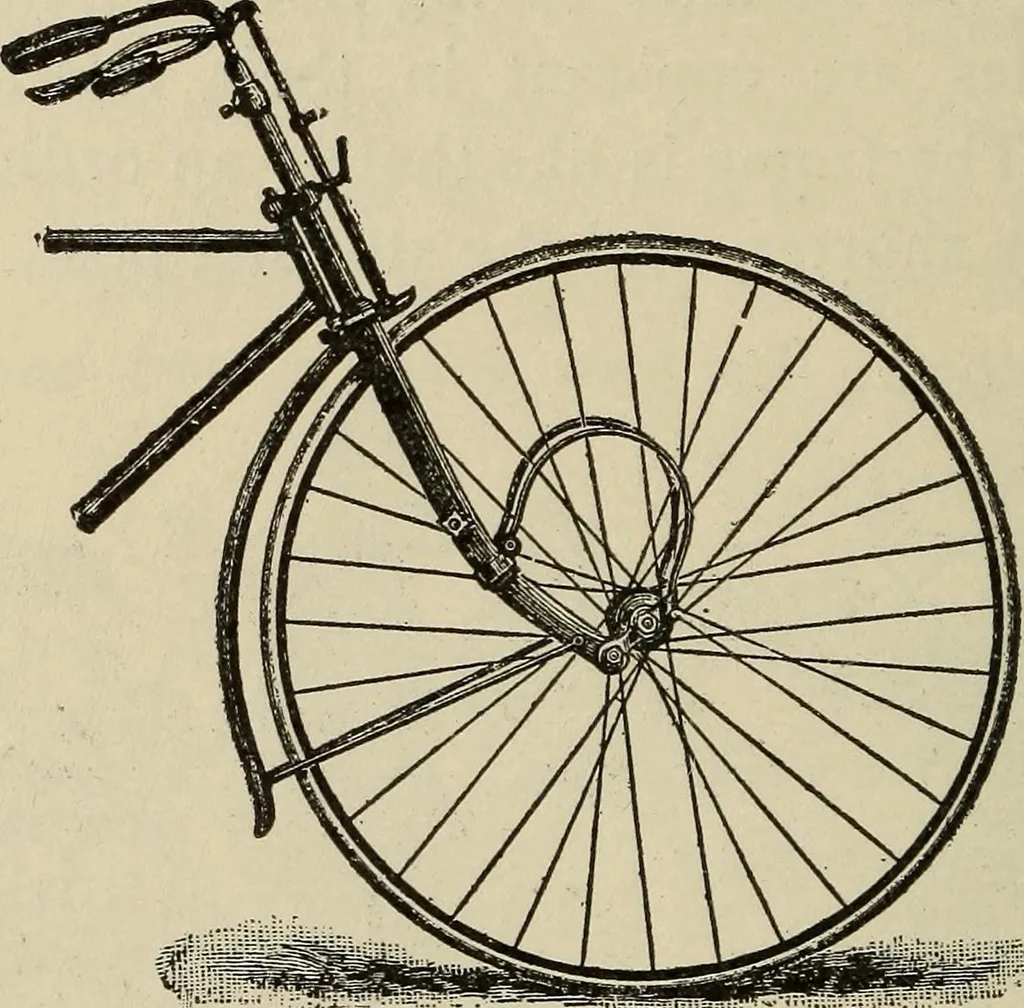

in length.These links attach, one to the top of the steeringforks, the other to the extremity of a secondary steer-ing post to which they are attached. A simple single-coil spring is placed betwen the two steering posts,which serves to support the parts in their proper rela- 222 WHEELS AND… … Royal Spring Fork. wheel steer better; the only spring fork that wontpitch; the only spring that has a double action; theonly spring with a pressure caused by levers. In the Rudge spring fork the fork sides are hingedin the middle, and to each end an arm is attached.The two arms depart from their…
