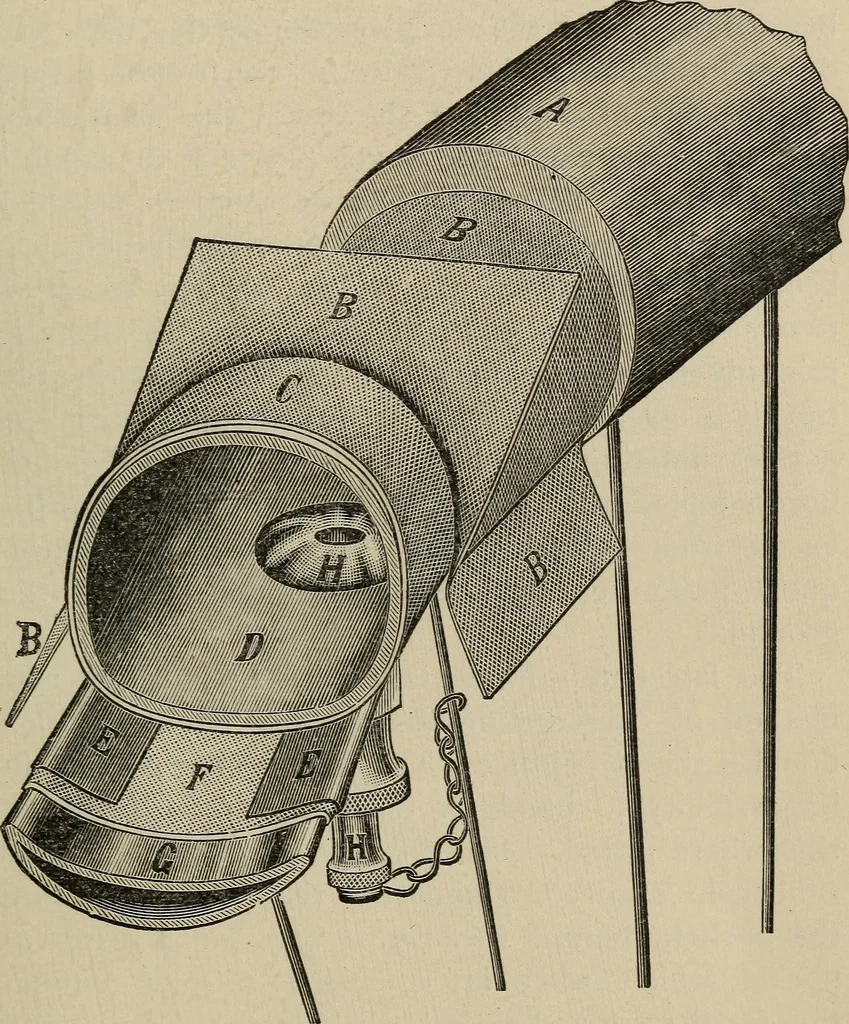

on of1891 the present form of tire was adopted. We shallbriefly describe the pneumatic tire as now made. The air tube has been strengthened without seri-ously increasing the weight, and after many experi-ments the very best quality of rubber has been fixedon, and the increased strength has not been… … Dunlop Pneumatic Tire. A. Outside Cover, or tread portion of Tire. B. Canvas Wrapper whichsecures Canvas Pocket C to Rim. C. Canvas Pocket. D. Air Tube.E. Rubber Strips, forming cushions for Air Tube to press against. F. Can-vas^ Foundation Strip, cemented to Rim. G. Metal Hollow Rim. H.…
