Wilson’s Carpentry and joinery / by John Wilson (1891)
Wilson, John · Manchester [England] : Percy Bros. · leaf 34

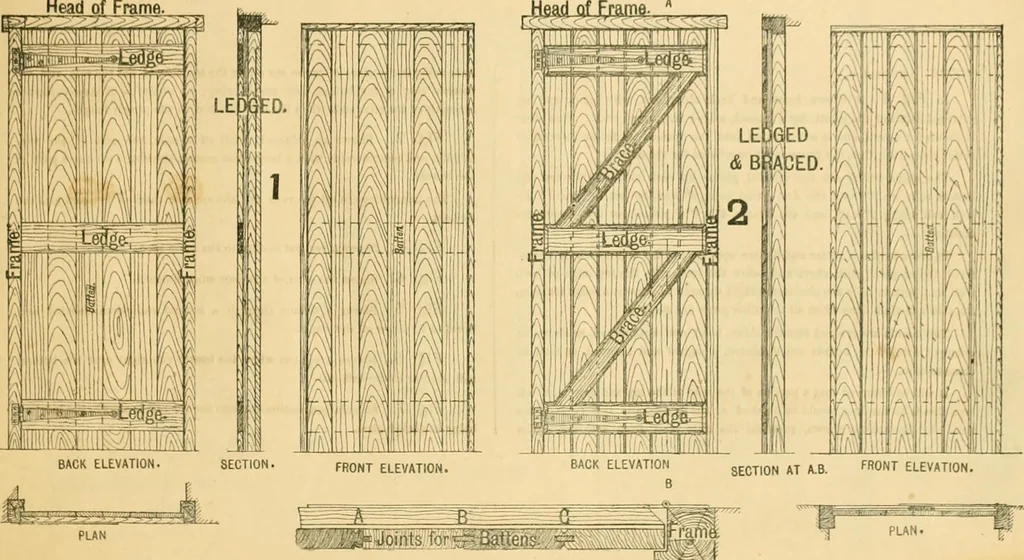

d sometime a staple and catch combined, are runin with lead, and answers for the catch if a latch be used, and for the bolt toslide into, it being usual to have a flat bolt on the middle ledge. When a wooden frame is used, then the frame is generally a solid one,4Jx3 or so, and rebated out J on and… … DOORS continued.— In Fig. 1. is shown front and back elevationB, with plan, and anenlarged detail of the joints, for a framed, ledged and braced door. This dooris shown for a yard, and is not rebated into the frame. If for an internal orbetter class door, then the frame must be rebated for the…
Carpentry · Joinery
