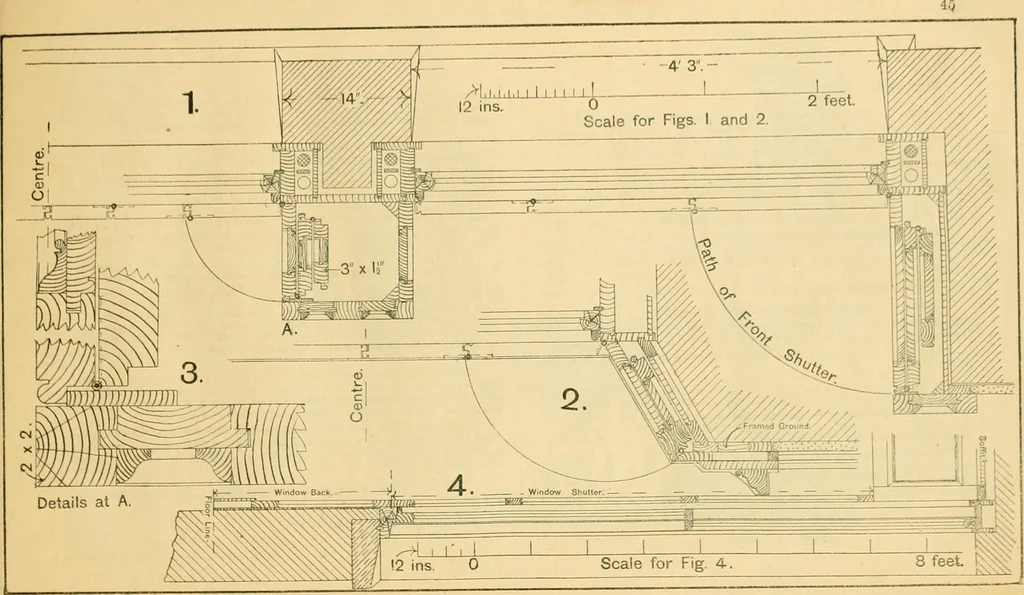

rave, to admit of the window being coveredby the shutter and one back-flap. In this it will be seen that a broad architrave is used, and a framed groundis fixed to receive the back-lining and plaster. The back-lining is framed, but they are often plain as shown at Fig. 1. Fig. 3. Shows an enlarged… … CASEMENT WINDOWS. Fig. 1. Shows a vertical section through a casement hinged to thestilo and prepared to open outside. The frames for these are as a rule solid,made of oak, pitch-pice, red-deal, Aa. The wooden sill of this is rebated tofit a stone bill, sunk, weathered and throated. In the inside…
