Wilson’s Carpentry and joinery / by John Wilson (1891)
Wilson, John · Manchester [England] : Percy Bros. · leaf 82

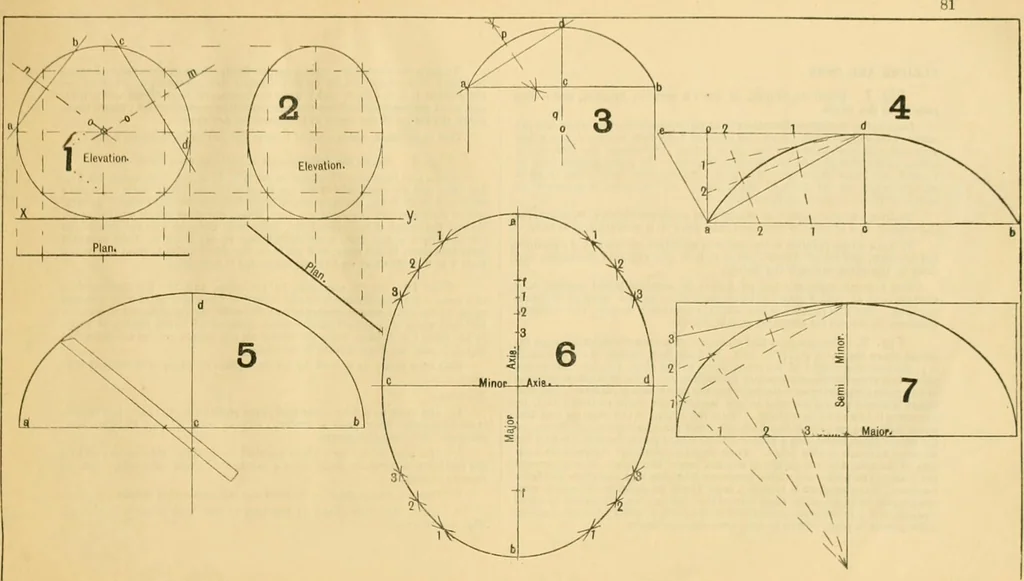

1, 2 and 3 determine points in the curve of the .ellipse.Exercises. 1. Determine points in the aro of a semi-oirclo by intersecting lines. 2. The opening of a segmental arch is 8 the rise 12, Determine thelength of radiuB (a) by figures (b), geometrically. 3. Draw the plan and elevation of a square… … ELLIPSE AND CONE. Fig. 1. Given an ellipse, to draw a normal, tangent, and a lineparallel to the ourve. Let the two conjugate diameters be at right angles to eaoh other, and thecurve of the ellipse drawn, from any point as a, to draw a normal, i.e., a lineperpendicular to the curve at the given…
Carpentry · Joinery
