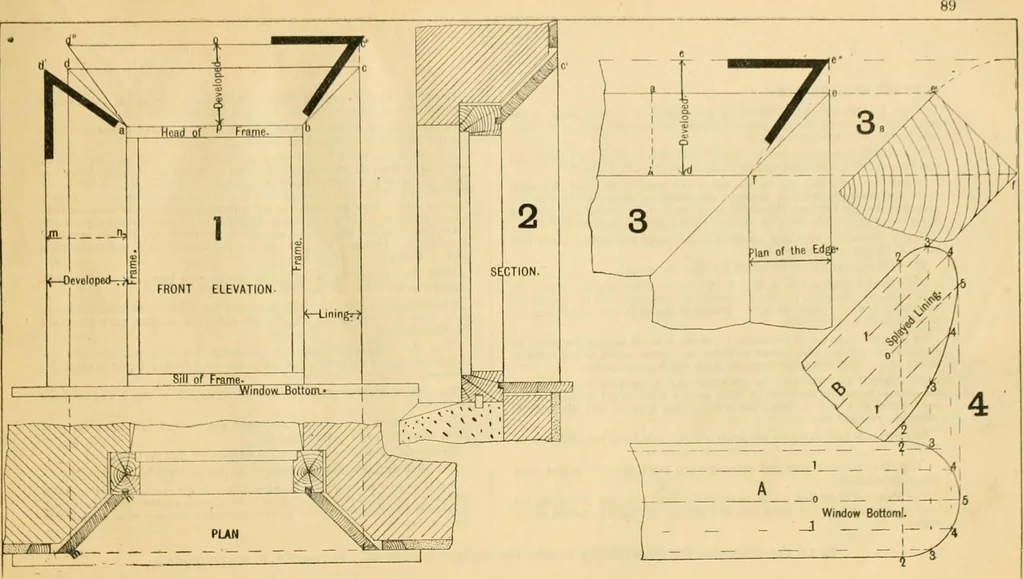

e, see Fig. 3, 3a. 3. Let the plan of the angle be 60°, see Fig. 3, the two sides sloping at45°. Show both side bevels and mitre cut for such an angle; also if one sidebe nailed over the other give the edge bevel. 4. Draw the plan of an hexagonal box, sides inclined at 45°, show bevelsfor side and… … CUTS FOK OBLIQUE WORK. Fig. 1. Shows a plan elevation and section, to a small scale, of thejamb linings given on the last page ; this has been repeated to show the edgecuts for the soffit and jamb linings. To obtain the necessary, or true angles (the bevels to be applied before theedges are…
