Wilson’s Carpentry and joinery / by John Wilson (1891)
Wilson, John · Manchester [England] : Percy Bros. · leaf 98

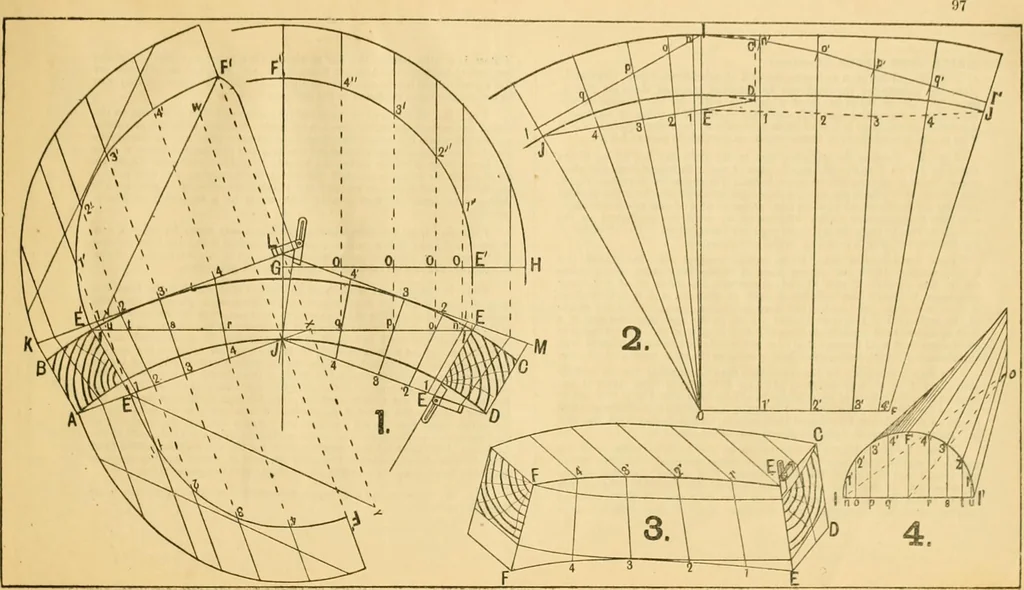

gh them, this must berepeated on the top side, this would do away with the soffit mould, Fig. 2. Fig. 4. Is a sketch of the cuneoid, the head in this case being formedby the intersection of a vertical hollow cylinder with this solid. In applying the face moulds, the joint at the springing is cut… … CIRCLE UPON CIRCLR.-Cnnfinurf. Fig. 1. Is the plan ami elevation of a circular-headed sash, circular inplan, the moulds for the head can be obtained same as those for Fig. 4,page 95. It ia usual to show a parallel width on the outside of thesash, there being radial bars, it is necessary to show…
