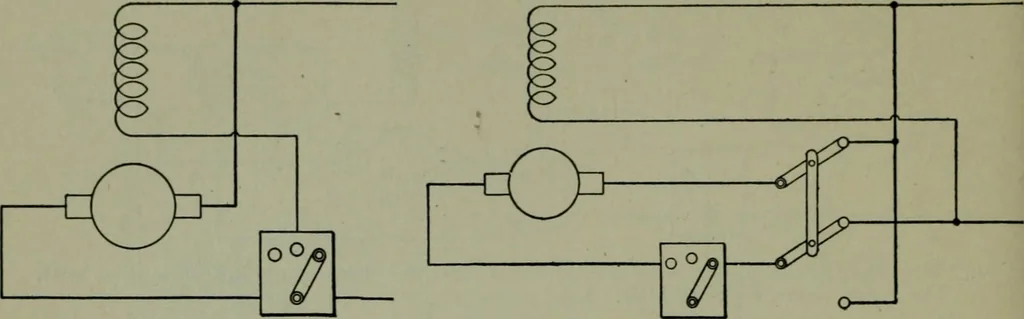

Fig. 141.—Series motor. Speed regulated by inserting resistances in shunt with the fieldwinding. Decrease in resistance increases the speed. 94 WIRING DIAGRAMS OF ELECTRICAL APPARATUS … Fig. 142.—Plain shunt motor withstarter. Speed practically constant, dropsslowly with heavy load. Fig. 1-13.—Reversing shunt motor withstarter.
