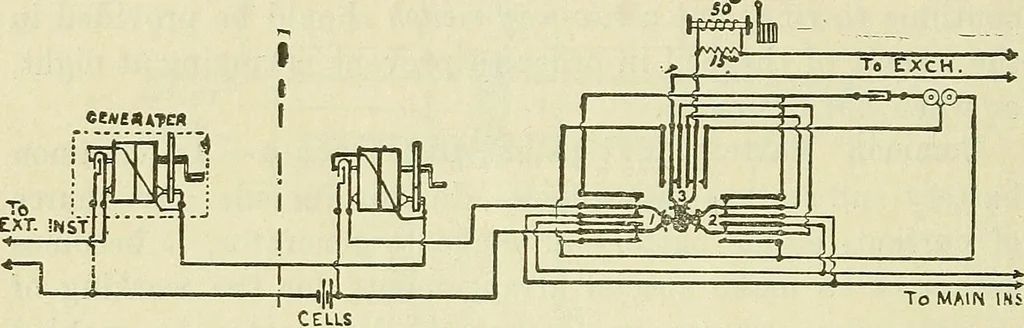

essed between any one of the three pairs of switch-springs—1, 2 and 3. This causes the springs to be lifted from the innerto the outer spring contacts. Normal; Exchange to Main and Extension—In thenormal position, as shown in the figure, the extension andmain instruments are connected in bridge to… … To MAIN INST. Fig. 150.—Connections for Single Extension with Intercommunica-tion-Magneto Calling in No. 1 switch the extension line is cut off the exchange andjoined to the extra bell through the condenser, while the main remains connected to the exchange line withoutthe possibility of being…
