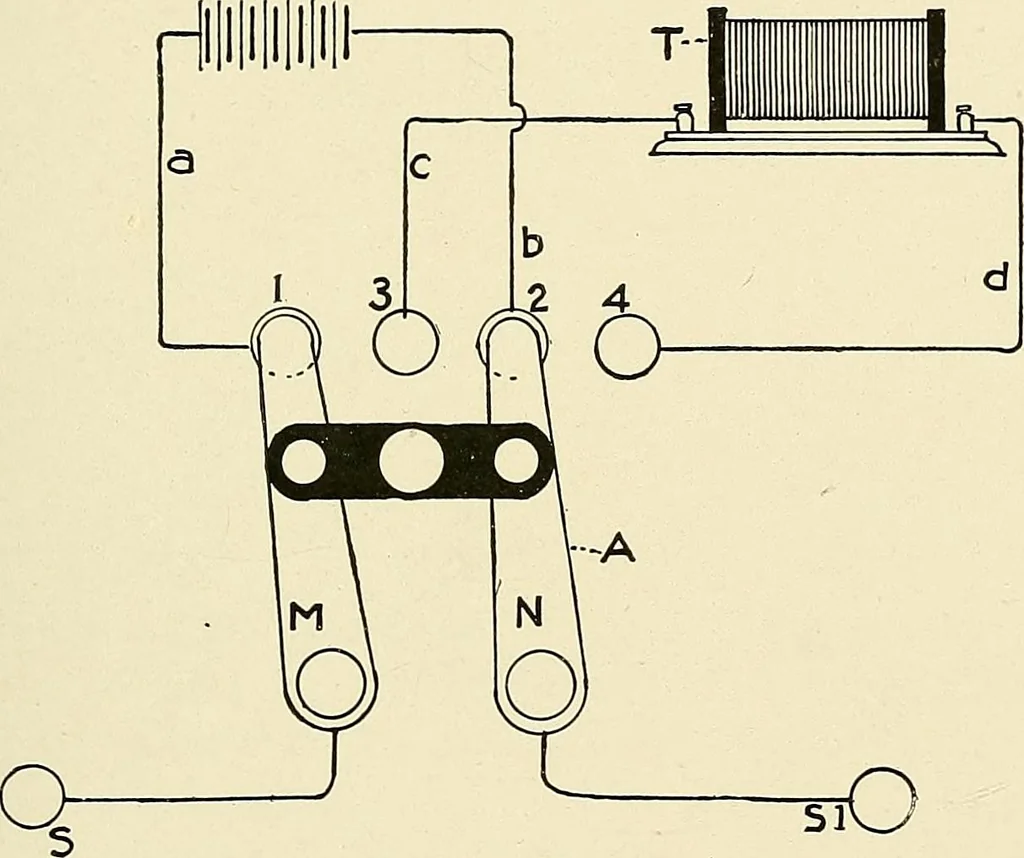

Tig. 45.—Physicians switch-board or wall plate. binding posts, etc., and it may be arranged for the cautery and sin-usoidal currents. Fig. 45 is a simple diagram of a physiciansswitch-board or wall plate. A is the milliamperemeter; B, rheo- CONTROLLING AND MEASURING APPARATUS 75 stat; C, rheotome;… … Fig. 43.—Current selector. switch A is on contacts 1 and 2, which are connected to the batteryconductors a and 5. When the current from the faradic coil T isused, the switch A is moved to the right and placed on contacts 3and 4, which are connected by conductors c and d to the sec-ondary of coil T.…
