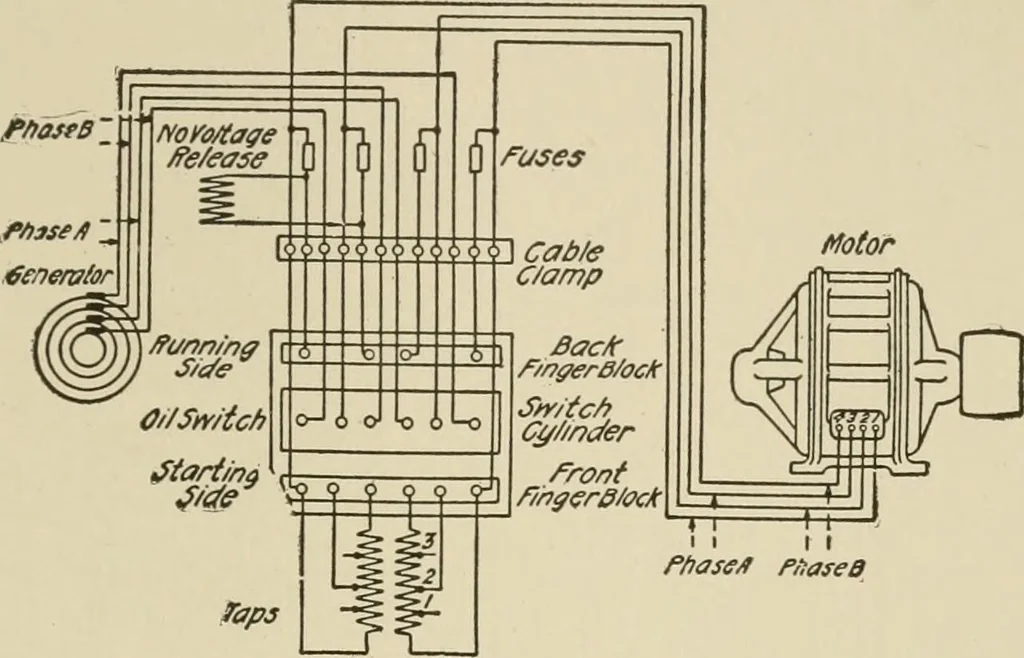

it is necessaryto replace them. When, how^ever, the switch is properly thrown into the startingposition, the current passes through the compensator. The wind-ings of the compensator should be provided with a number oftaps, so that the motor current may be obtained at a voltage con- 176 MANAGEMENT… … ffiasffA Piiofeo Fig. 50. Wiring Diagram for Two-Phase Starting Compensator for Four-Wire Circuit witli Fuses Courtesy of General Electric Company windings are entirely disconnected and the motor takes its currentdirectly from the lines at full potential. Compensators are usually connected for low…
