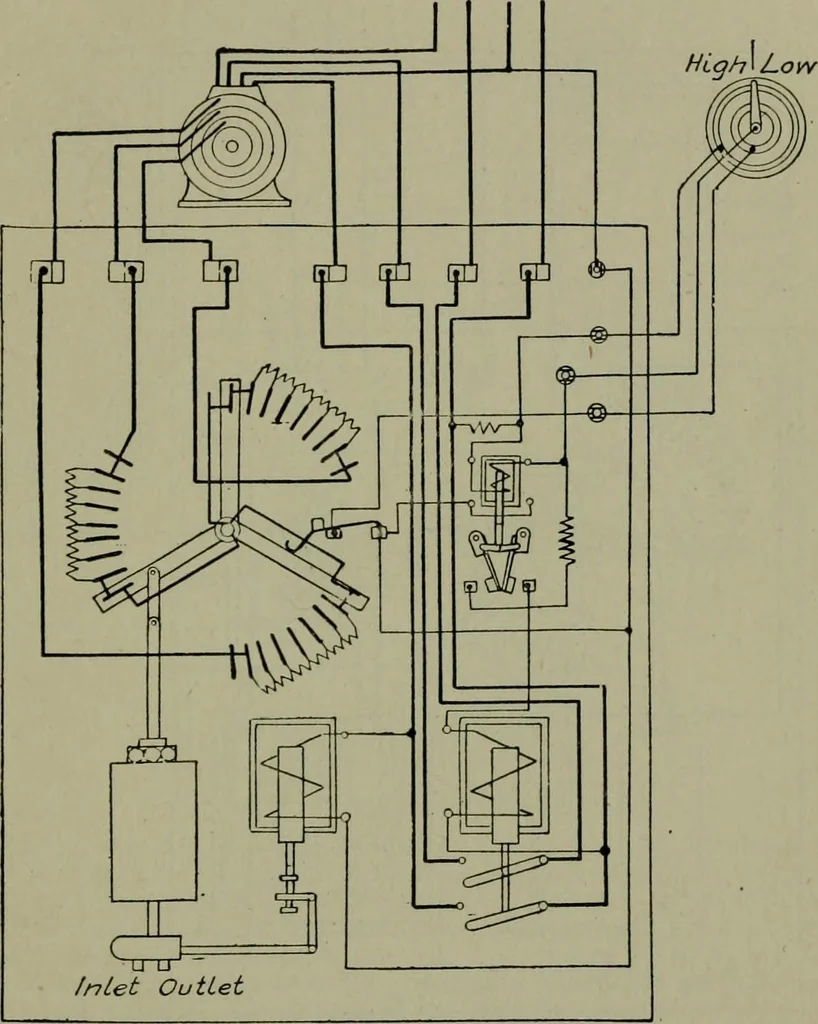

Fig. 248.—Connections for a two-phase induction motor, self-starter. This starter worksexactly the same as the one shown in Fig. 247, except that the resistance is inserted in thesecondary circuit instead of the primary. RHEOSTATS AND CONTROLLERS 157 … Fig. 249.—Connections for a two-phase induction motor self-starter connected in thesecondary, arranged for operation by air pressure regulator, through auxiliary magneticswitch. 158 WIRING .DIAGRAMS OF ELECTRICAL APPARATUS
