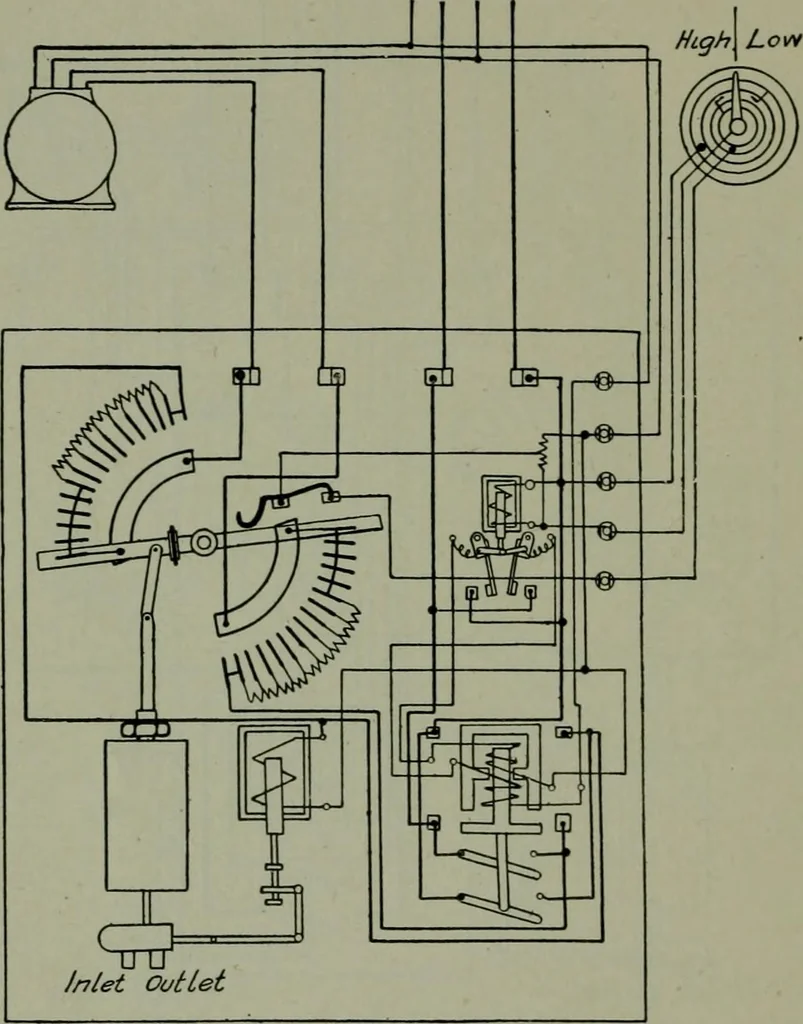

Fig. 249.—Connections for a two-phase induction motor self-starter connected in thesecondary, arranged for operation by air pressure regulator, through auxiliary magneticswitch. 158 WIRING .DIAGRAMS OF ELECTRICAL APPARATUS … Fig. 250.—Connections for a two-phase induction motor, self-starter, with starting resist-ance connected in the primary circuit. The operation is exactly the same as that of the startershown in Fig. 249. RHEOSTATS AND CONTROLLERS 159
