Wiring diagrams of electrical apparatus and installations (1913)
McGraw-Hill · New York, McGraw-Hill Book Company · leaf 68

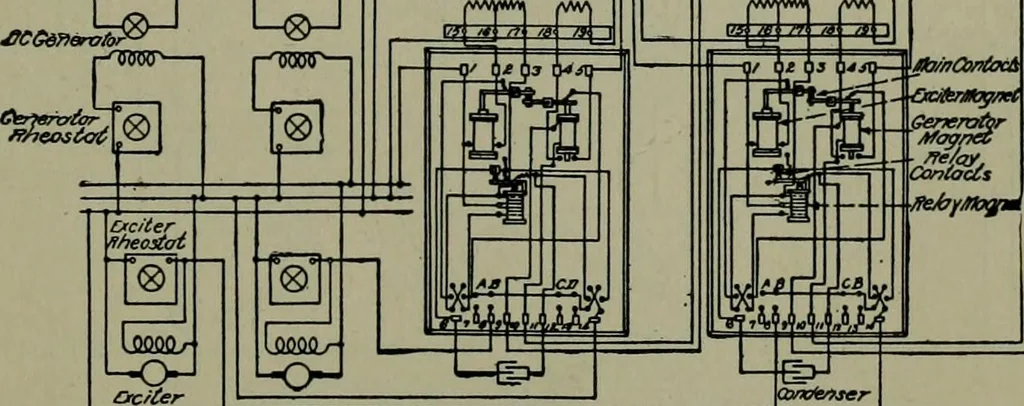

6 eneraior rield ,Equal/lingffheoitat heldffheostot Fig. 94.—Connections of Tirrill regulator for three generators operating in parallel,regulator is equipped with four relays and will compensate for line drop. The … Fig. 95.—Connections of two Tirrill regulators for controlling separately excited gen-erators connected in parallel on a three-wire system. This system permits the compensationfor line drop when using any number of generators in parallel. 58 WIRING XHAGRAMS OF ELECTRICAL APPARATUS Ma/n contacts…
