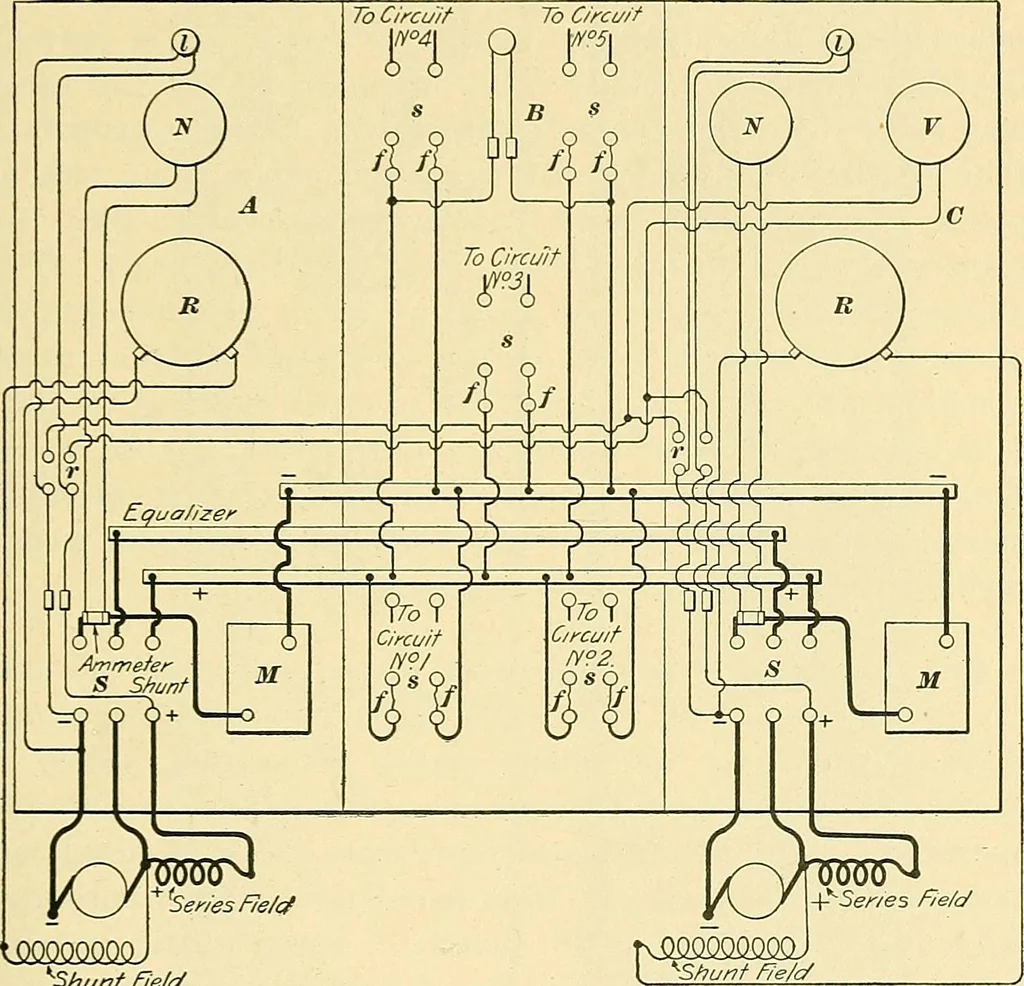

bstituted for thecircuit-breakers M, but otherwise the board shows about §17 ELECTRIC LIGHTING. 57 the minimum amount of apparatus required for operatingtwo dynamos singly or in parallel on five feeders. Fig. 59shows the general scheme of connections with the exceptionof those for the ground… … KShunf Fieffit Fig. 59. 46. On both the above boards, the equalizing connec-tion is shown as running to the switchboard and connectedto the middle blade of the triple-pole switch. This is thegeneral practice where the dynamos are of comparativelysmall capacity; but for large units it is now…
