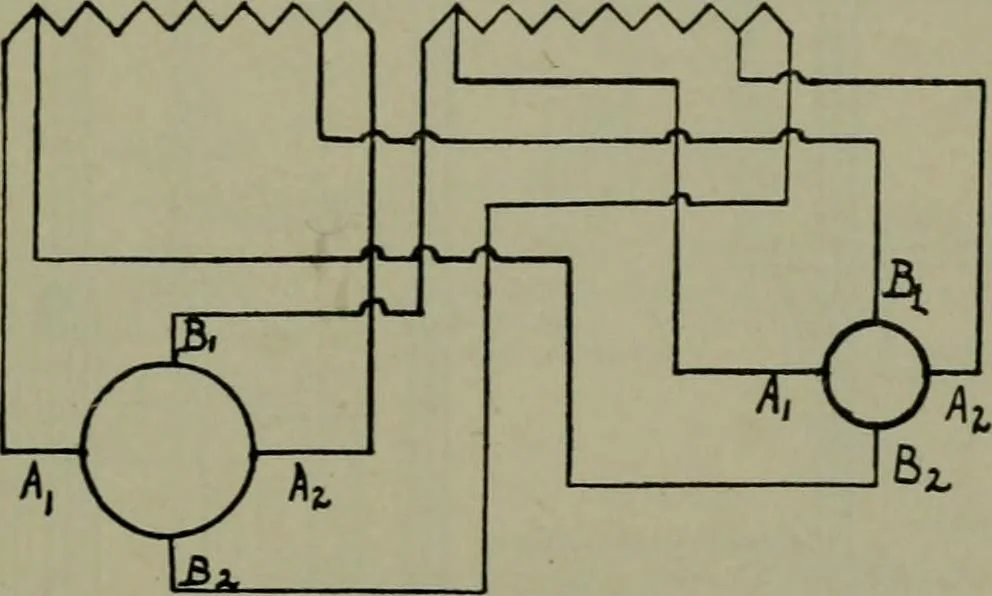

B Fig. 103.—Two-phase three-wire transformer connections for synchronous converter with induction starting motor. … Fig. 104.—Two-phase four-wire transformer connections for synchronous converter with induction starting motor. J L f Transformer No. 1 Transformer So. Z Transformer No. 3
