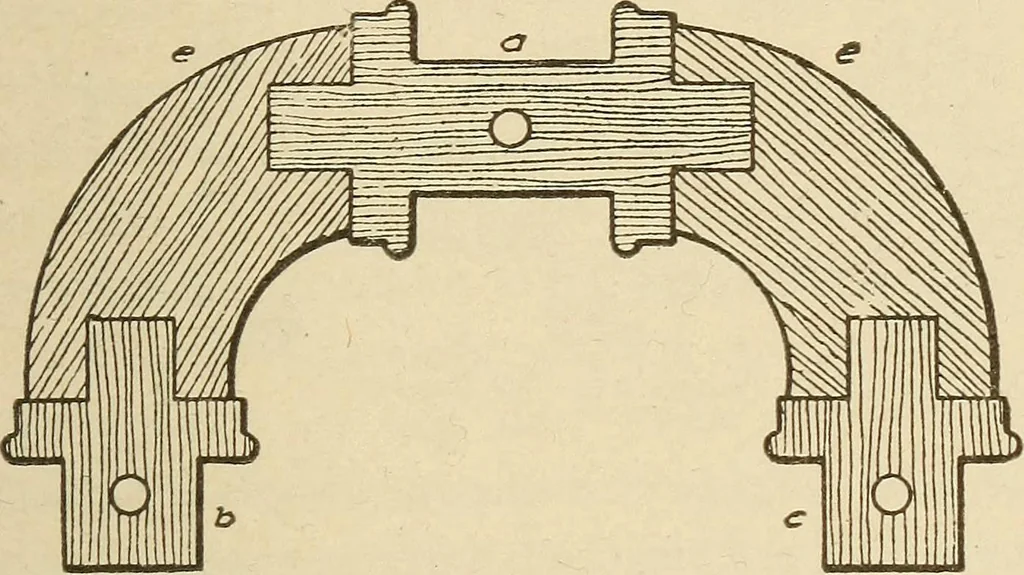

Fig. 209. Elbow PipeFitiiiig Lathe Mounting. In mounting heavy split patterns in thelathe, a sjxicial metal dog should be provided, and one such as inFig. 20G will be found to meet most requirements for this class of PATTERN MAKING 121 work. In using this dog, which is also the center on which…
