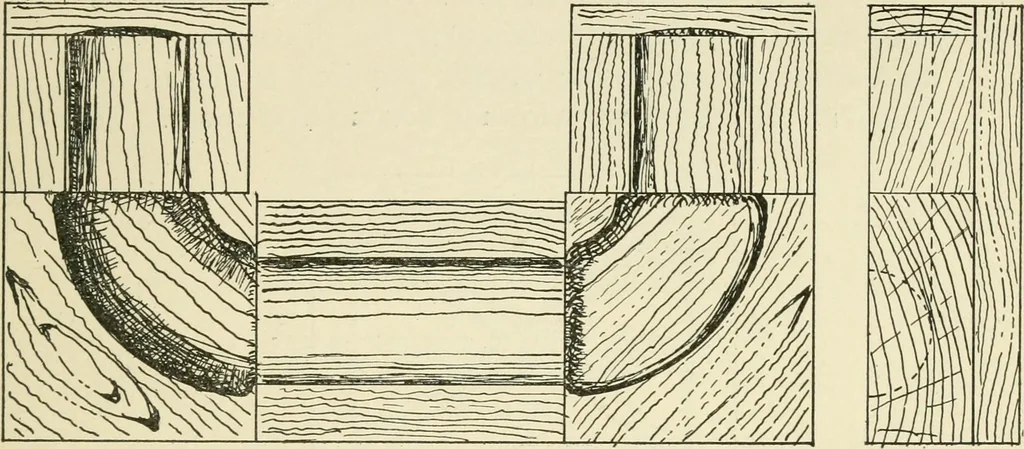

, and glue them to a chuck (but not to PIPE FITTINGS 131 each other) that has been previously covered with paper,and turn them to the required shape. A solid piece may-be used and cut into the required number of pieces afterbeing turned,but this method is not as good. In mount-ins: these pieces on… … Fig. 76. alike, except that on one the shape at A will be left thefull size and of a length to equal A in Fig. 75. The onemade like the figure will be cut in two, the parts B andC squared as at E, Fig. 69; it is fitted into the first pieceas shown at B and C, Fig. 75. The core box to go with this…
