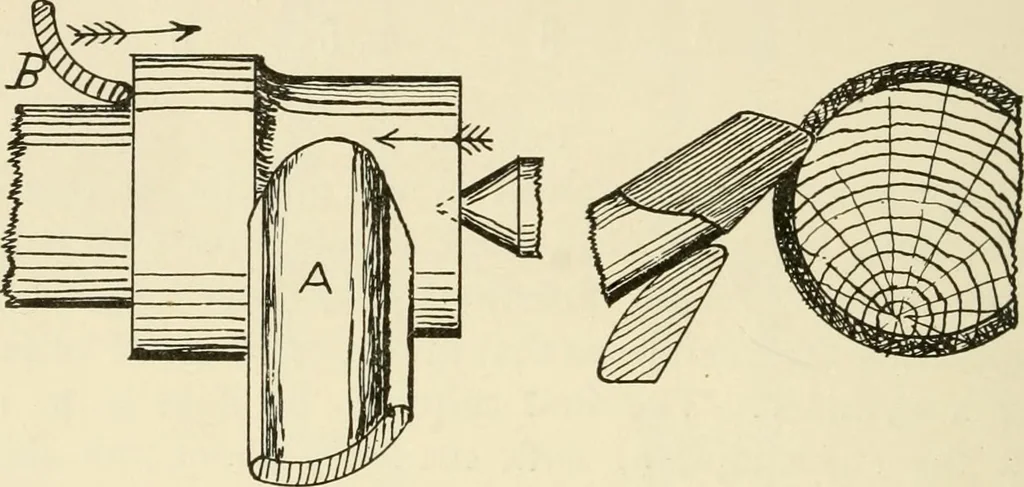

ing:. It is a goodplan, before applying the power, to giv^e the belt a pullwith the hand to ensure that everything is clear. The gouge is the first tool to be used on this kind ofturning; the cutting done by it at this stage of thework is termed the roughing CUt. The gouge is so heldthat a center… … Fig. 55. direction in which the tool is moving is indicated by thearrow in each case. In this position the angle of the cutwill be about 25° to 30° with the axis of the cylinder,which is the best for this kind of turning. The gouge isused by good turners for doing a very large proportion ofthe work…
Patternmaking
