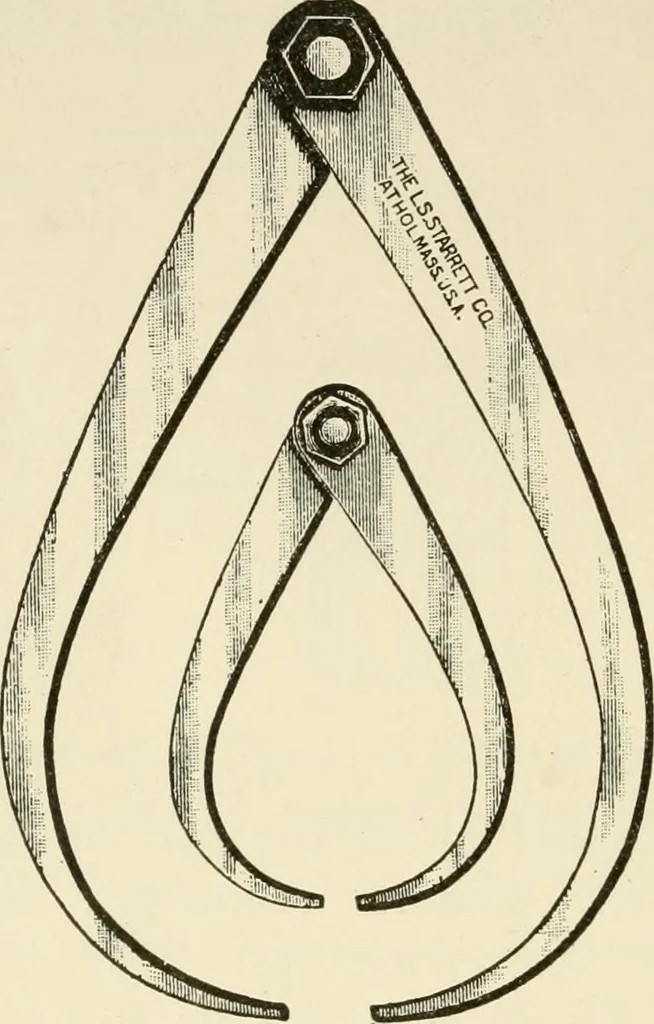

An illustration from Wood pattern-making; the fundamental principles and elementary practice of the art, 1906, leaf 225 — but it is a serrated one, and thereforeis quickly dulled. TOOLS FOR MEASURING TURNED WORK The special tools for measuring turned work areshown at Figs. 59and60. The former is the outside caliper,the latter the inside caliper. The outside caliper is usedfor measuring the outside of round or…
