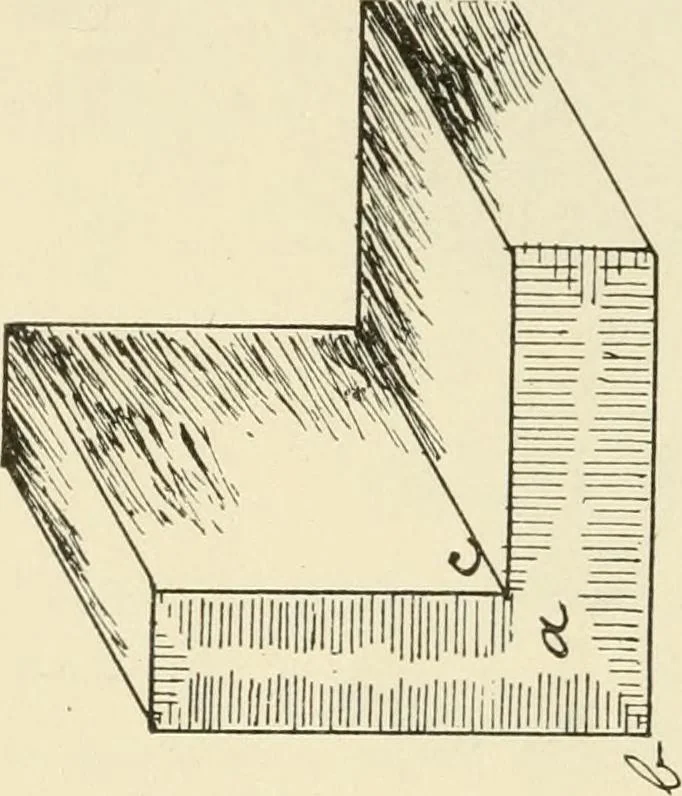

An illustration from Wood pattern-making; the fundamental principles and elementary practice of the art, 1906, leaf 45 — Clement Universal Sander CHAPTER V. FILLETS Sharp corners on a casting, whether inside or out-side, generally detract greatly from its appearance, andalso, in the case of internal angles especially, injure itsstrength. This being the case, sharp corners must beavoided in the pattern, as the casting…
