Radford's cyclopedia of construction; carpentry, building and architecture. Based on the practical experience of a large staff of experts in actual constrcution work (1909)

Johnson, Alfred Sidney, 1860-, Radford, William A., 1865- · Chicago Radford Architectural Co · leaf 164

An illustration from Radford's cyclopedia of construction; carpentry, building and architecture. Based on the practical experience of a large staff of experts in actual constrcution work, 1909, leaf 164

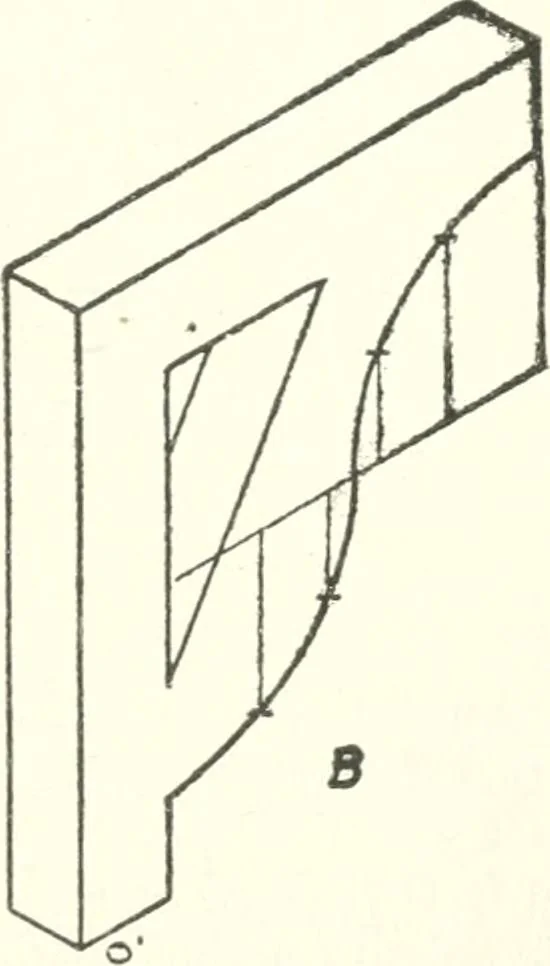

Fig. 91. Drawing the Isometric of a Wooden Bracket. applied to oblique projection when the 45-degreeinclination is used. The lines in oblique projection correspond-ing to the isometric axes, are as shown in Fig.93, one vertical, one horizontal, and one oblique(in this figure 45 degrees). Any line…
