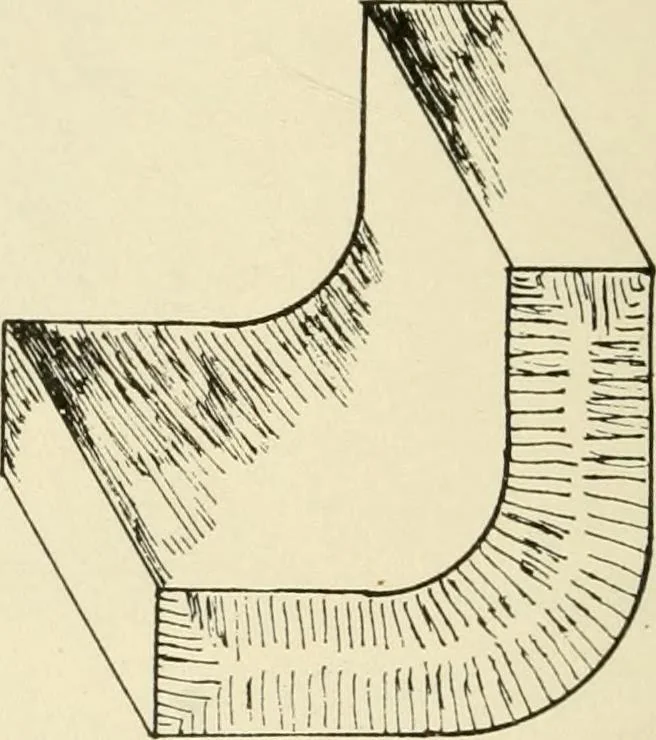

An illustration from Wood pattern-making; the fundamental principles and elementary practice of the art, 1906, leaf 45 — Fig. 6. Fig. 7. molten to the solid state. There are always more or lessstrains set up in a casting by the shrinkage or contrac-tion that takes place at that time. As the iron hardensthe crystals seem to arrange themselves in such a man-er that their lines of strength are perpendicular to the…
