Bench work in wood: a course of study and practice designed for the use of schools and colleges (1902)
Goss, W. F. M. (William Freeman Myrick), 1859-1928 · Boston, Ginn & company · leaf 136

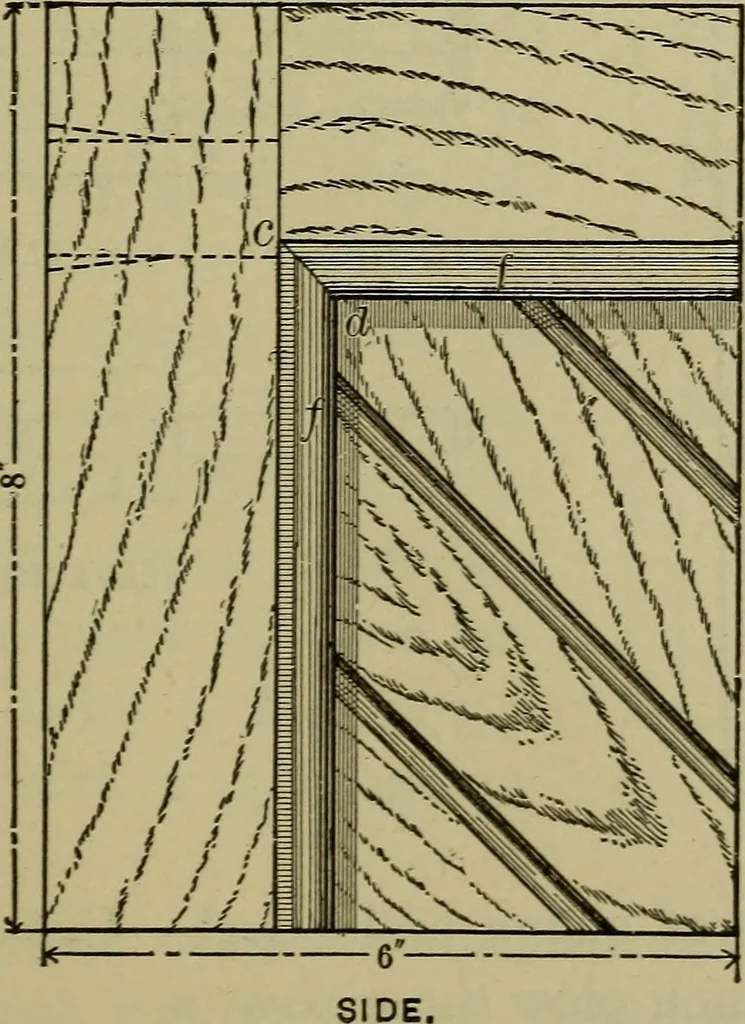

-awls are useful in preparing the way for smallscrews. The cutting edge should always be placed across thegrain so that the fibers will be cut, and not simply pressed apartto close up again when the tool is withdrawn. The difference BENCH WORK. 121 in effect may be seen by comparing, Fig. 214, A,… … \i 122 BENCH WORK IN WOOD. Three pieces of stock are required, each jointed to dimen-sions as follows: stile i^ X 2^ X 9; rail i^ X 2i^ x 6^;panel strip ^ X if X 18. The completed exercise is shownby Fig. 215. 184. In considering the joint between the stile and rail asshown by Fig. 216, three new…
Woodwork (Manual training)
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
