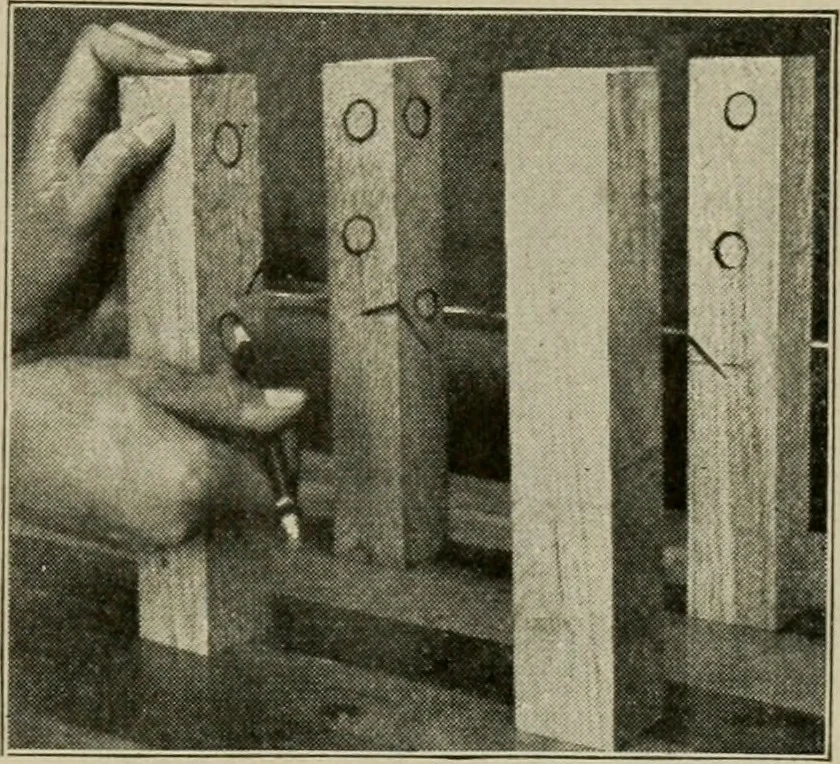

ce-marksas shown in Figs. 37and 43. After all four sidesofeachleghavebeenjointed, set them onend again and markthe places for theholes for the rungs(Fig. 217). Fromthe drawing (Fig.216) lay out one legand then by super-position, lay out theothers from this one.Be sure to make nomistake. The chief… … Fig. 21 7—Marking Position of Rungs you mark the positions for the holes, you should mark points at which to draw knife lines for cutting off the ends and pencil lines for the chamfers This is shown in Fig. 218. After longitudinal positions for the holes have been located, set the gauge and draw…
